Strapi Email Designer (v5)

Design your own email templates directly from the Strapi admin panel and use the magic to send programmatically email from your controllers / services.

Screenshot of an imported design

Strapi Email Designer (v5)

❤️ Credits

Special thanks to:

Unlayer for the amazing email editor
Strapi Plugin Email Designer for doing the heavy lifting for v3 and v4

💸 Support Me

If you can 😊

⚙️ Version

This plugin is compatible with Strapi v5.

How plugins are structured in v5 is way different than v4, so I am not trying to make this plugin compatible with v4. Use the Email Designer plugin here for v4.

✅ Prerequisites

Node v18+ (I recommend using nvm, there is a windows and mac/linux version)
A Strapi v5 project (npx create-strapi-app@latest my-project)

⬇️ Installation

Install the plugin by runnig the following command:

npm install strapi-plugin-email-designer-v5

🎚️ Middleware Configuration

By default, Strapi's security is tight. You will need to add the following to your config/middleware.ts file:

1{
2  name: "strapi::security",
3  config: {
4    contentSecurityPolicy: {
5      useDefaults: true,
6      directives: {
7        "script-src": ["'self'", "'unsafe-inline'", "editor.unlayer.com"],
8        "frame-src": ["'self'", "editor.unlayer.com"],
9        upgradeInsecureRequests: null,
10      },
11    },
12  },
13}

Ensure that you replace the "strapi::security" line in the file with the above.

🎚️ Plugin Configuration

The plugin configuration accepts most of the properties that can be passed to the Unlayer editor. You can get more information about them here: https://docs.unlayer.com/docs/getting-started#configuration-options

This is the type definition for the configuration:

1import type { EmailEditorProps } from "react-email-editor";
2
3export type EmailConfig = Pick<
4  NonNullable<EmailEditorProps["options"]>,
5  | "projectId"
6  | "locale"
7  | "appearance"
8  | "user"
9  | "mergeTags"
10  | "designTags"
11  | "specialLinks"
12  | "tools"
13  | "blocks"
14  | "fonts"
15  | "safeHtml"
16  | "customCSS"
17  | "customJS"
18  | "textDirection"
19>;

📧 Nodemailer

If you are going to send emails from the Strapi backend, you need to configure the email plugin. You can visit the docs here to learn more

npm install @strapi/provider-email-nodemailer --save

⚙️ Default configuration

Some options are passed by default to the editor. Expand the following object to see the default configuration:

Default configuration

1{
2  mergeTagsConfig: {
3    autocompleteTriggerChar: "@",
4    sort: false,
5    delimiter: ["{{", "}}"],
6  },
7  appearance: {
8    theme: "modern_light",
9  },
10  fonts: {
11    showDefaultFonts: false,
12  },
13  tools: {
14    image: {
15      properties: {
16        src: {
17          value: {
18            url: "https://picsum.photos/600/350",
19          },
20        },
21      },
22    },
23  },
24  mergeTags: {
25    core: {
26      name: "Core",
27      mergeTags: {
28        // Values that can be used in the Reset Password context
29        resetPassword: {
30          name: "Reset Password",
31          mergeTags: {
32            // User in the Reset Password context
33            user: {
34              name: "USER",
35              mergeTags: {
36                username: {
37                  name: "Username",
38                  value: "{{= USER.username }}",
39                  sample: "john_doe",
40                },
41                email: {
42                  name: "Email",
43                  value: "{{= USER.email }}",
44                  sample: "johndoe@example.com",
45                },
46              },
47            },
48            token: {
49              name: "TOKEN",
50              value: "{{= TOKEN }}",
51              sample: "corresponds-to-the-token-generated-to-be-able-to-reset-the-password",
52            },
53            url: {
54              name: "URL",
55              value: "{{= URL }}",
56              sample: "is-the-link-where-the-user-will-be-redirected-after-clicking-on-it-in-the-email",
57            },
58            serverUrl: {
59              name: "SERVER_URL",
60              value: "{{= SERVER_URL }}",
61              sample: "is-the-absolute-server-url-(configured-in-server-configuration)",
62            },
63          },
64        },
65        // Values that can be used in the Email Addres Confirmation context
66        addressConfirmation: {
67          name: "Confirm Address",
68          mergeTags: {
69            // User in the Email Address Confirmation context
70            user: {
71              name: "USER",
72              mergeTags: {
73                username: {
74                  name: "Username",
75                  value: "{{= USER.username }}",
76                  sample: "john_doe",
77                },
78                email: {
79                  name: "Email",
80                  value: "{{= USER.email }}",
81                  sample: "johndoe@example.com",
82                },
83              },
84            },
85            code: {
86              name: "CODE",
87              value: "{{= CODE }}",
88              sample: "corresponds-to-the-CODE-generated-to-be-able-confirm-the-user-email",
89            },
90            url: {
91              name: "URL",
92              value: "{{= URL }}",
93              sample:
94                "is-the-Strapi-backend-URL-that-confirms-the-code-(by-default-/auth/email-confirmation)",
95            },
96            serverUrl: {
97              name: "SERVER_URL",
98              value: "{{= SERVER_URL }}",
99              sample: "is-the-absolute-server-url-(configured-in-server-configuration)",
100            },
101          },
102        },
103      },
104    },
105    mustache: {
106      name: "Mustache",
107      mergeTags: {
108        basic: {
109          name: "Basic Output",
110          mergeTags: {
111            raw: {
112              name: "Display Raw Content",
113              value: "{{{REPLACE_ME}}}",
114            },
115            output: {
116              name: "Regular Output",
117              value: "{{REPLACE_ME}}",
118            },
119            dottedOutput: {
120              name: "Dot notation for Output",
121              value: "{{REPLACE_ME.NESTED_VALUE}}",
122            },
123          },
124        },
125        loops: {
126          name: "Loops",
127          mergeTags: {
128            raw: {
129              name: "Display Raw Content in Loop",
130              value: "{{#ARRAY_OR_OBJECT_TO_ITERATE}}\n{{{REPLACE_ME}}}\n{{/ARRAY_OR_OBJECT_TO_ITERATE}}",
131            },
132            output: {
133              name: "Regular Output in Loop",
134              value: "{{#ARRAY_OR_OBJECT_TO_ITERATE}}\n{{REPLACE_ME}}\n{{/ARRAY_OR_OBJECT_TO_ITERATE}}",
135            },
136            dottedOutput: {
137              name: "Dot notation for Output in Loop",
138              value:
139                "{{#ARRAY_OR_OBJECT_TO_ITERATE}}\n{{REPLACE_ME.NESTED_VALUE}}\n{{/ARRAY_OR_OBJECT_TO_ITERATE}}",
140            },
141          },
142        },
143      },
144    },
145  },
146}

If you wish to pass in any configuration, you can do so in the config/plugins.ts file. Here is an example of how to pass in a custom configuration:

1// You can import the EmailConfig type from the plugin
2import type { EmailConfig } from "strapi-plugin-email-designer-5/dist/server/src";
3
4export default ({ env }) => ({
5  // You need Email configured if you are gonna send emails from the Strapi backend
6  // This is a simple configuration for development using MailDev
7  email: {
8    config: {
9      provider: "nodemailer",
10      providerOptions: {
11        host: "0.0.0.0",
12        port: 1025,
13        ignoreTLS: true,
14      },
15    },
16  },
17  // This is the configuration for the Email Designer plugin
18  "email-designer-5": {
19    enabled: true,
20    // Your custom configuration here
21    config: {
22      // Here the Merge Tags defined will be merged with the defaults above
23      mergeTags: {
24        company: {
25          name: "Company",
26          mergeTags: {
27            name: {
28              name: "Company Name",
29              value: "ACME Corp",
30              sample: "ACME Corp",
31            },
32          },
33        },
34      },
35    } as EmailConfig,
36  },
37});

▶️ Usage

After installing & configuring your app for the plugin, you can access the email designer by navigating to the Email Designer (v5) section in the admin panel.

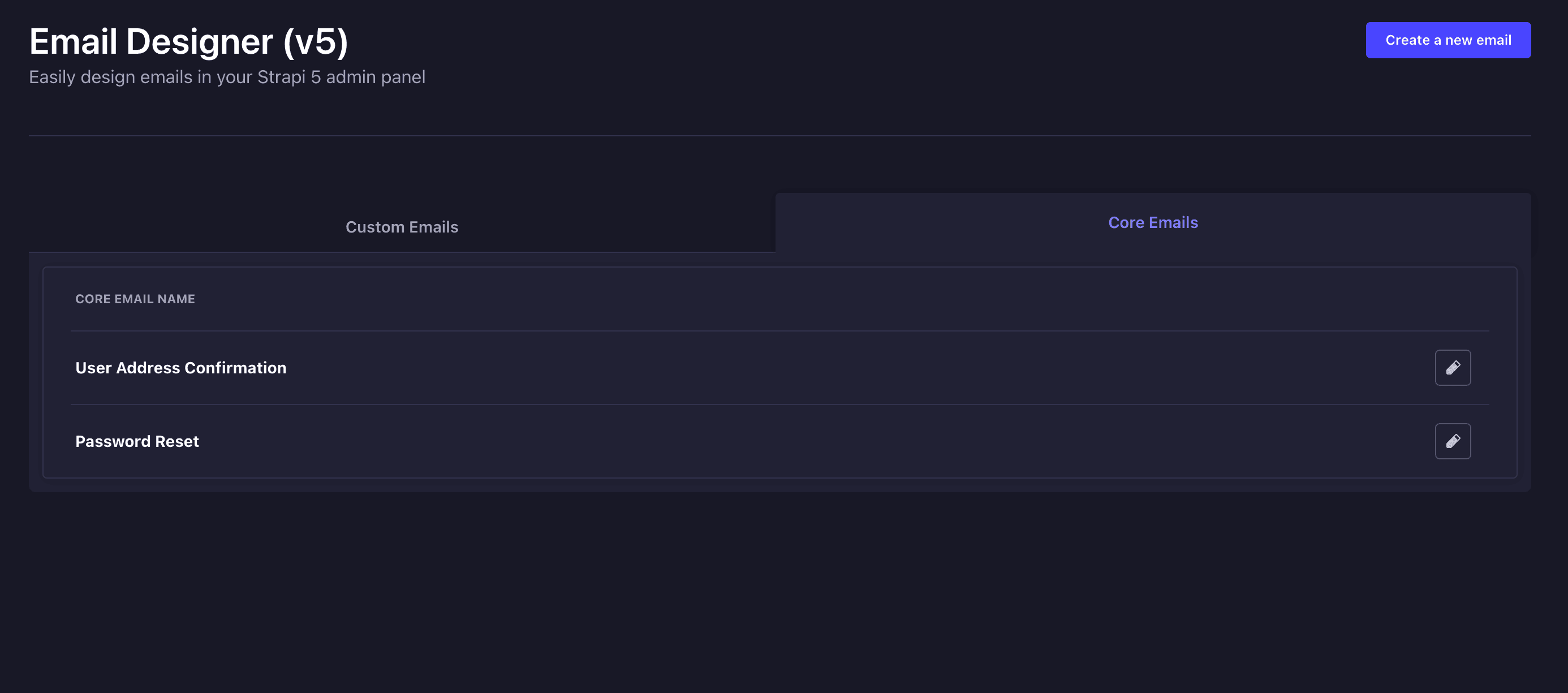

Admin Area

✅ Creating a new design

Click on the Create a new email button to start a new design.

✅ Importing a design

You can import a set of designs that were exported by the platform by clicking on the Import Email Templates button located at the bottom right of the page.

✅ Exporting a design

You can export all your designs by clicking the Export Email Templates button located at the bottom right of the page.

✅ Importing a Single Design

When you start a new design, a button will be located in the top right called Import that allows you to import a single design. If the json file is valid Unlayer exported design, it will be imported into the editor.

✅ Saving a design

Once you are done editing your design, you can click on the Save button located at the top right of the page. The Template Reference ID, Template Name, & Subject fields are required to save the design.(Well not the last two lol)

The Template Reference ID is a unique identifier for the design. It is used to reference the design when sending emails programmatically.

{ } Mustache

The backend uses Mustache to render the templates. You can visit the Mustache documentation to learn more about how to use it.

💻 Programmatically Sending Emails

You can send emails programmatically by using the email-designer-5 plugin. Here is an example of how to send an email:

!IMPORTANT
This is tested the index.ts file of the src folder of my strapi project.

1// import type { Core } from '@strapi/strapi';
2
3export default {
4  /**
5   * An asynchronous register function that runs before
6   * your application is initialized.
7   *
8   * This gives you an opportunity to extend code.
9   */
10  register(/* { strapi }: { strapi: Core.Strapi } */) {},
11
12  /**
13   * An asynchronous bootstrap function that runs before
14   * your application gets started.
15   *
16   * This gives you an opportunity to set up your data model,
17   * run jobs, or perform some special logic.
18   */
19  async bootstrap(/* { strapi }: { strapi: Core.Strapi } */) {
20    try {
21      await strapi
22        .plugin("email-designer-5")
23        .service("email")
24        .sendTemplatedEmail(
25          {
26            // required
27            // This can also be an array of email addresses
28            to: "to@example.com",
29            // Optional
30            cc: ["zez@jakce.ad", "ilez@gevcanuso.la"],
31            // Optional
32            bcc: ["fud@darfuv.py"],
33            // optional if /config/plugins.js -> email.settings.defaultFrom is set
34            from: "from@example.com",
35            // optional if /config/plugins.js -> email.settings.defaultReplyTo is set
36            replyTo: "reply@example.com",
37            // optional array of files
38            attachments: [],
39          },
40          {
41            // required - Ref ID defined in the template designer (won't change on import)
42            templateReferenceId: 20,
43            // If provided here will override the template's subject.
44            // Can include variables like `Thank you for your order {{= USER.firstName }}!`
45            subject: `Thank you for your order`,
46          },
47          {
48            // this object must include all variables you're using in your email template
49            USER: { firstName: "John", lastName: "Doe" },
50            order: {
51              products: [
52                { name: "Article 1", price: 9.99 },
53                { name: "Article 2", price: 5.55 },
54              ],
55            },
56            shippingCost: 5,
57            total: 20.54,
58          }
59        );
60      strapi.log.info("Email sent");
61    } catch (error) {
62      strapi.log.error(error);
63    }
64  },
65};

This is what the email looked like in the MailDev client

MailDev Test Results

🚀 Available Services

Here is a list of the services that the plugin provides. You can call upon them in your controllers or services(or wherever you want).

✅ Email Services

`sendTemplatedEmail`

You will probably use this one a lot.

1await strapi
2  .plugin("email-designer-5")
3  .service("email")
4  .sendTemplatedEmail(EMAIL_OPTIONS_OBJECT, EMAIL_TEMPLATE_OBJECT, DATA);

`compose`

I didn't get why this service was deprecated in the original plugin, but i found it useful for sending PDF data to my frontend.

1await strapi.plugin("email-designer-5").service("email").compose({ templateReferenceId, data });

This returns the email HTML and Text with the data merged.

1{
2  html: "<html>...</html>",
3  text: "..."
4}

🛟 Contributing

I am SUPER new to React. I have been using Nuxt all my life. If you see where I could have done something better in the admin area, please let me know. I am open to suggestions.

Just fork the repo, make your changes, and submit a PR. I will review it as soon as I can. I am open to learning new things.

✍🏽 License

MIT

I mean, I am not the original author of the plugin. I just made it compatible with Strapi v5. So, I am not sure if I can license it. But, I will keep it MIT for now.
