Create a diagram of your tables from the API and plugins

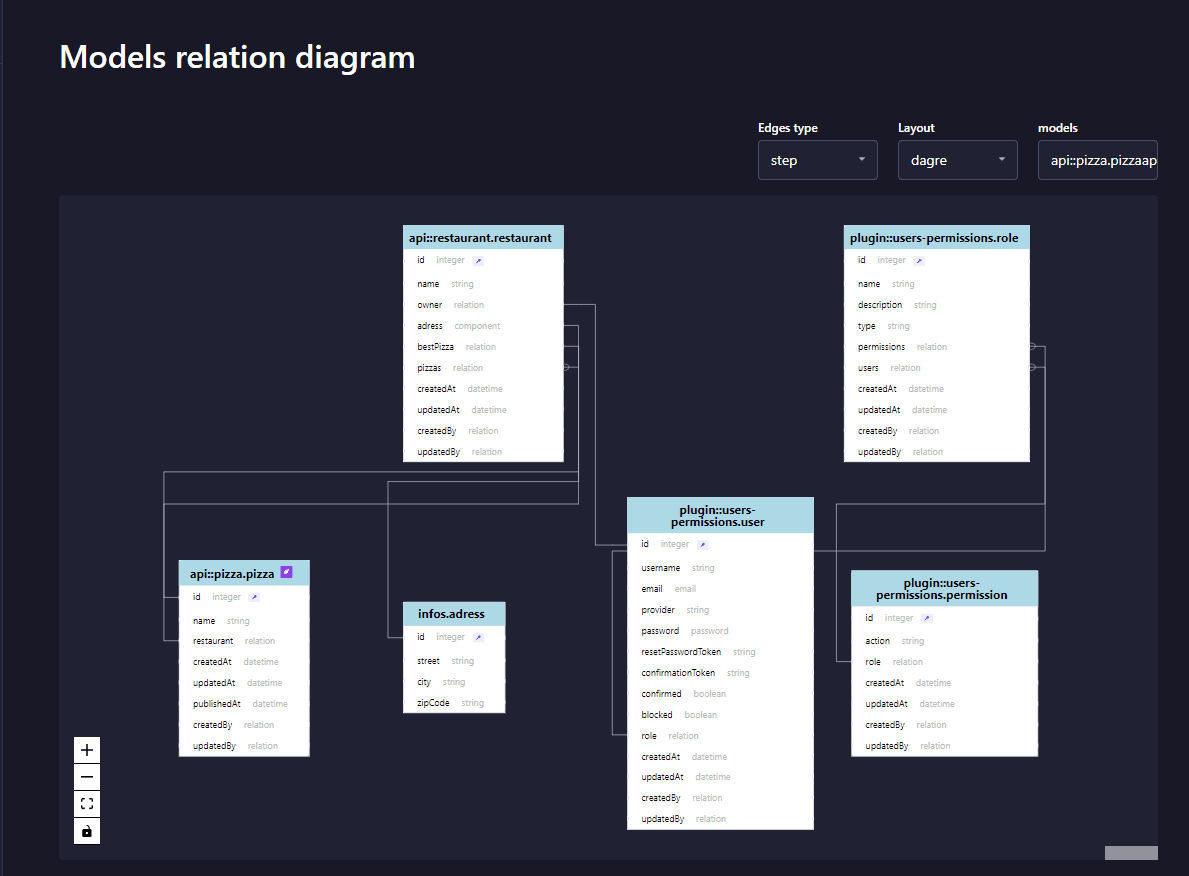

Entity Relationship Diagram => BETA Version
Create a diagram of every strapi collections and components with fields and relation.
Possibility of displaying or not all collections and components.
Possibility to choose the layout among Elk and dagre.
Possibility to choose the type of edge.
Minimum version strapi: 4.12.0
1
2
3
npm i strapi4-models-relation-diagram
npm run build
npm run develop
1
2
3
4
5
6
7
8
9
10
11
"models-relation-diagram": {
enabled: true,
config: {
defaultExcludeAdmin: true, // hide admin:: + strapi:: + webhook + plugin::i18n.locale + plugin::content-releases
defaultHideUpload: true, // hide plugin::upload.file + plugin::upload.folder
defaultExcludeComponents: false, // hide components
defaultLayout: 'dagre', // default layout: ELK,Dagre
defaultEdgesType: 'step', // default edge type: straight,step,smoothstep,bezier
hideMarkers: true, // hide relation marker on edges
}
},
npm install strapi4-models-relation-diagram
