Welcome to the final part of our Google Meet clone tutorial series! In this part, we'll implement video conferencing, screen sharing, and real-time chat functionality using WebRTC and Socket.io.

For reference purposes, here's the outline of this blog series:

• Part 1: Setting Up the Backend and Frontend with Strapi 5 and Next.js..
• Part 2: Real-Time Features, Video Integration, and Screen Sharing.

Prerequisites

Before starting, ensure you have:

• Completed Part 1 this tutorial series.
• Basic understanding of Web Real-Time Communication (WebRTC) concepts.
• You have the Strapi backend created in Part 1 running on your computer.

Installing Dependencies

To continue from where we left off in Part 1, let's add the required WebRTC and Socket.io packages by running the command below in your frontend project folder:

npm install socket.io-client @types/webrtc simple-peer @types/simple-peer

Here is what we installed inside our frontend project:

• socket.io-client: Realtime application framework client
• @types/webrtc: TypeScript definitions for webrtc.
• simple-peer: The mobile web app connects groups of up to four people in a peer-to-peer WebRTC audio and video call so that they can mutually prove unique personhood.
• @types/simple-peer: TypeScript definitions for simple-peer.

For the Strapi backend, install the Socket.io package:

cd ../google-meet-clone-backend
npm install socket.io

Setting Up WebSocket Server

First, create a socket.ts file in the config folder and add the code below:

1export default ({ env }) => ({
2  enabled: true,
3  config: {
4    port: env.int("SOCKET_PORT", 1337),
5    cors: {
6      origin: env("SOCKET_CORS_ORIGIN", "*"),
7      methods: ["GET", "POST"],
8    },
9  },
10});

Then, create a new folder named socket in the api directory for the socket API. In the api/socket directory, create a new folder named services and a socket.ts file in the services folder.

Create Event Listeners for Real-time Peer-to-Peer Connection in Strapi

Add the code snippets below in the api/socket/services/socket.ts file to set and initialize a socket connection, and create all the event listeners we need to communicate with our Next.js client for real-time Peer to Peer connection:

1import { Core } from "@strapi/strapi";
2
3interface MeetingParticipant {
4  socketId: string;
5  username: string;
6}
7
8interface Meeting {
9  participants: Map<string, MeetingParticipant>;
10  lastActivity: number;
11}
12
13export default ({ strapi }: { strapi: Core.Strapi }) => {
14  // Store active meetings and their participants
15  const activeMeetings = new Map<string, Meeting>();
16
17  // Cleanup inactive meetings periodically
18  const cleanupInterval = setInterval(
19    () => {
20      const now = Date.now();
21      activeMeetings.forEach((meeting, meetingId) => {
22        if (now - meeting.lastActivity > 1000 * 60 * 60) {
23          // 1 hour timeout
24          activeMeetings.delete(meetingId);
25        }
26      });
27    },
28    1000 * 60 * 15
29  );
30
31  return {
32    initialize() {
33      strapi.eventHub.on("socket.ready", async () => {
34        const io = (strapi as any).io;
35        if (!io) {
36          strapi.log.error("Socket.IO is not initialized");
37          return;
38        }
39
40        io.on("connection", (socket: any) => {
41          const { meetingId, userId } = socket.handshake.query;
42          strapi.log.info(
43            `Client connected - Socket: ${socket.id}, User: ${userId}, Meeting: ${meetingId}`
44          );
45
46          // Initialize meeting if it doesn't exist
47          if (!activeMeetings.has(meetingId)) {
48            activeMeetings.set(meetingId, {
49              participants: new Map(),
50              lastActivity: Date.now(),
51            });
52          }
53
54          socket.on("join-meeting", async ({ meetingId, userId }) => {
55            try {
56              // Get user data with username
57              const user = await strapi
58                .query("plugin::users-permissions.user")
59                .findOne({
60                  where: { id: userId },
61                  select: ["id", "username"],
62                });
63
64              strapi.log.info(`User ${userId} joining meeting ${meetingId}`);
65
66              const meeting = activeMeetings.get(meetingId);
67              if (!meeting) return;
68
69              // Add participant to meeting with both ID and username
70              meeting.participants.set(userId.toString(), {
71                socketId: socket.id,
72                username: user.username,
73              });
74              meeting.lastActivity = Date.now();
75
76              // Join socket room
77              socket.join(meetingId);
78
79              // Get current participants with their usernames
80              const currentParticipants = Array.from(
81                meeting.participants.entries()
82              )
83                .filter(([id]) => id !== userId.toString())
84                .map(([id, data]) => ({
85                  userId: id,
86                  username: data.username,
87                }));
88
89              // Send current participants to the joining user
90              socket.emit("participants-list", currentParticipants);
91
92              // Notify others about the new participant
93              socket.to(meetingId).emit("user-joined", {
94                userId: userId.toString(),
95                username: user.username,
96              });
97
98              strapi.log.info(
99                `Current participants in meeting ${meetingId}:`,
100                Array.from(meeting.participants.entries()).map(
101                  ([id, data]) => ({
102                    id,
103                    username: data.username,
104                  })
105                )
106              );
107            } catch (error) {
108              strapi.log.error("Error in join-meeting:", error);
109            }
110          });
111
112          socket.on("chat-message", ({ message, meetingId }) => {
113            socket.to(meetingId).emit("chat-message", message);
114          });
115
116          const meeting = activeMeetings.get(meetingId);
117          if (!meeting) return;
118
119          socket.on("signal", ({ to, from, signal }) => {
120            console.log(
121              `Forwarding ${signal.type} signal from ${from} to ${to}`
122            );
123            const targetSocket = meeting.participants.get(
124              to.toString()
125            )?.socketId;
126            if (targetSocket) {
127              io.to(targetSocket).emit("signal", {
128                signal,
129                userId: from.toString(),
130              });
131            } else {
132              console.log(`No socket found for user ${to}`);
133            }
134          });
135          const handleDisconnect = () => {
136            const meeting = activeMeetings.get(meetingId);
137            if (!meeting) return;
138
139            // Find and remove the disconnected user
140            const disconnectedUserId = Array.from(
141              meeting.participants.entries()
142            ).find(([_, socketId]) => socketId === socket.id)?.[0];
143
144            if (disconnectedUserId) {
145              meeting.participants.delete(disconnectedUserId);
146              meeting.lastActivity = Date.now();
147
148              // Notify others about the user leaving
149              socket.to(meetingId).emit("user-left", {
150                userId: disconnectedUserId,
151              });
152
153              strapi.log.info(
154                `User ${disconnectedUserId} left meeting ${meetingId}`
155              );
156              strapi.log.info(
157                `Remaining participants:`,
158                Array.from(meeting.participants.keys())
159              );
160
161              // Clean up empty meetings
162              if (meeting.participants.size === 0) {
163                activeMeetings.delete(meetingId);
164                strapi.log.info(
165                  `Meeting ${meetingId} closed - no participants remaining`
166                );
167              }
168            }
169          };
170
171          socket.on("disconnect", handleDisconnect);
172          socket.on("leave-meeting", handleDisconnect);
173        });
174
175        strapi.log.info("Conference socket service initialized successfully");
176      });
177    },
178
179    destroy() {
180      clearInterval(cleanupInterval);
181    },
182  };
183};

Initialize Socket.io Server with Strapi

Then update your src/index.ts file to initialize the Socket.IO server, set up event listeners for user updates and creations, and integrate the socket service with Strapi:

1import { Core } from "@strapi/strapi";
2import { Server as SocketServer } from "socket.io";
3
4interface SocketConfig {
5  cors: {
6    origin: string | string[];
7    methods: string[];
8  };
9}
10
11export default {
12  register({ strapi }: { strapi: Core.Strapi }) {
13    const socketConfig = strapi.config.get("socket.config") as SocketConfig;
14
15    if (!socketConfig) {
16      strapi.log.error("Invalid Socket.IO configuration");
17      return;
18    }
19
20    strapi.server.httpServer.on("listening", () => {
21      const io = new SocketServer(strapi.server.httpServer, {
22        cors: socketConfig.cors,
23      });
24
25      (strapi as any).io = io;
26      strapi.eventHub.emit("socket.ready");
27    });
28  },
29
30  bootstrap({ strapi }: { strapi: Core.Strapi }) {
31    const socketService = strapi.service("api::socket.socket") as {
32      initialize: () => void;
33    };
34    if (socketService && typeof socketService.initialize === "function") {
35      socketService.initialize();
36    } else {
37      strapi.log.error("Socket service or initialize method not found");
38    }
39  },
40};

Implementing Video Meeting Page

With our socket connection and events created, let's create a real-time video meeting page to handle video conference rooms to allow users to have video meetings.

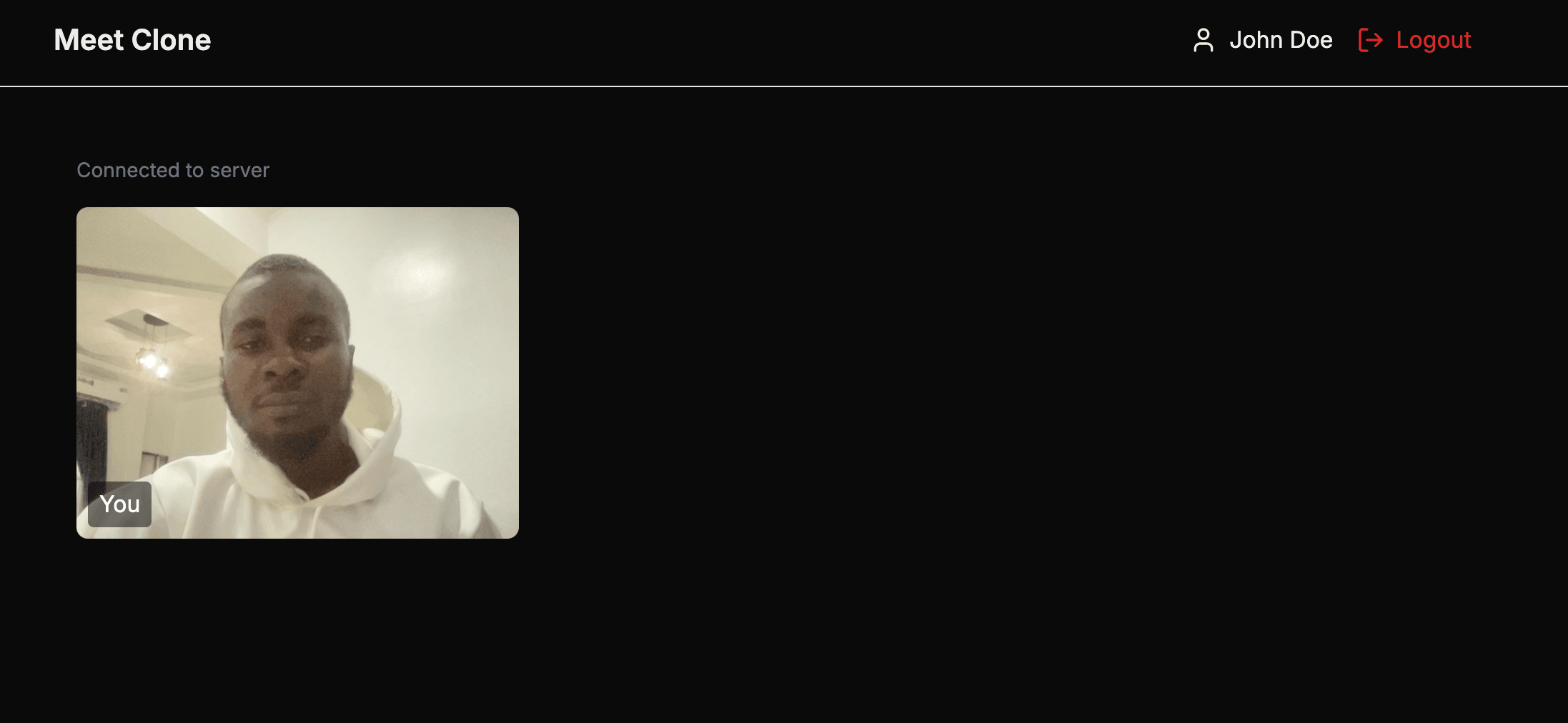

Create Page for Video Conference Room

Create a new page for the video conference room in src/app/meetings/[id]/page.tsx file and add the code snippets below:

1'use client'
2
3import { useEffect, useRef, useState } from "react"
4import { useParams } from "next/navigation"
5import SimplePeer from "simple-peer"
6import { io, Socket } from "socket.io-client"
7import { getCookie } from "cookies-next"
8import { User } from "@/types"
9
10interface ExtendedSimplePeer extends SimplePeer.Instance {
11  _pc: RTCPeerConnection
12}
13
14interface Peer {
15  peer: SimplePeer.Instance
16  userId: string
17  stream?: MediaStream
18}
19
20export default function ConferenceRoom() {
21  const params = useParams()
22  const [peers, setPeers] = useState<Peer[]>([])
23  const [stream, setStream] = useState<MediaStream | null>(null)
24  const socketRef = useRef<Socket>()
25  const userVideo = useRef<HTMLVideoElement>(null)
26  const peersRef = useRef<Peer[]>([])
27  const [user, setUser] = useState<User | null>(null)
28  const [isConnected, setIsConnected] = useState(false)
29  const [screenStream, setScreenStream] = useState<MediaStream | null>(null)
30  const [isScreenSharing, setIsScreenSharing] = useState(false)
31
32  useEffect(() => {
33    try {
34      const cookieValue = getCookie("auth-storage")
35      if (cookieValue) {
36        const parsedAuthState = JSON.parse(String(cookieValue))
37        setUser(parsedAuthState.state.user)
38      }
39    } catch (error) {
40      console.error("Error parsing auth cookie:", error)
41    }
42  }, [])
43
44  useEffect(() => {
45    if (!user?.id || !params.id) return
46
47    const cleanupPeers = () => {
48      peersRef.current.forEach((peer) => {
49        if (peer.peer) {
50          peer.peer.destroy()
51        }
52      })
53      peersRef.current = []
54      setPeers([])
55    }
56
57    cleanupPeers()
58
59    socketRef.current = io(process.env.NEXT_PUBLIC_STRAPI_URL || "", {
60      query: { meetingId: params.id, userId: user.id },
61      transports: ["websocket"],
62      reconnection: true,
63      reconnectionAttempts: 5,
64    })
65
66    socketRef.current.on("connect", () => {
67      setIsConnected(true)
68      console.log("Socket connected:", socketRef.current?.id)
69    })
70
71    socketRef.current.on("disconnect", () => {
72      setIsConnected(false)
73      console.log("Socket disconnected")
74    })
75
76    navigator.mediaDevices
77      .getUserMedia({ video: true, audio: true })
78      .then((stream) => {
79        setStream(stream)
80        if (userVideo.current) {
81          userVideo.current.srcObject = stream
82        }
83
84        socketRef.current?.emit("join-meeting", {
85          userId: user.id,
86          meetingId: params.id,
87        })
88
89        socketRef.current?.on("signal", ({ userId, signal }) => {
90          console.log("Received signal from:", userId, "Signal type:", signal.type)
91          let peer = peersRef.current.find((p) => p.userId === userId)
92
93          if (!peer && stream) {
94            console.log("Creating new peer for signal from:", userId)
95            const newPeer = createPeer(userId, stream, false)
96            peer = { peer: newPeer, userId }
97            peersRef.current.push(peer)
98            setPeers([...peersRef.current])
99          }
100
101          if (peer) {
102            try {
103              peer.peer.signal(signal)
104            } catch (err) {
105              console.error("Error processing signal:", err)
106            }
107          }
108        })
109
110        socketRef.current?.on("participants-list", (participants) => {
111          console.log("Received participants list:", participants)
112
113          cleanupPeers()
114          setPeers([...peersRef.current])
115        })
116
117        socketRef.current?.on("user-joined", ({ userId, username }) => {
118          console.log("New user joined:", userId)
119          if (userId !== user?.id.toString()) {
120
121            if (stream && !peersRef.current.find((p) => p.userId === userId)) {
122              console.log("Creating non-initiator peer for new user:", userId)
123              const peer = createPeer(userId, stream, false)
124              peersRef.current.push({ peer, userId })
125              setPeers([...peersRef.current])
126            }
127          }
128        })
129
130        socketRef.current?.on("user-left", ({ userId }) => {
131          console.log("User left:", userId)
132          const peerIndex = peersRef.current.findIndex((p) => p.userId === userId)
133          if (peerIndex !== -1) {
134            peersRef.current[peerIndex].peer.destroy()
135            peersRef.current.splice(peerIndex, 1)
136            setPeers([...peersRef.current])
137          }
138        })
139      })
140      .catch((error) => {
141        console.error("Error accessing media devices:", error)
142      })
143
144    return () => {
145
146      if (socketRef.current) {
147        socketRef.current.emit("leave-meeting", {
148          userId: user?.id,
149          meetingId: params.id,
150        })
151
152        socketRef.current.off("participants-list")
153        socketRef.current.off("user-joined")
154        socketRef.current.off("user-left")
155        socketRef.current.off("signal")
156        socketRef.current.disconnect()
157      }
158
159      if (stream) {
160        stream.getTracks().forEach((track) => track.stop())
161      }
162
163      cleanupPeers()
164    }
165  }, [user?.id, params.id])
166
167  useEffect(() => {
168    if (!socketRef.current) return
169
170    socketRef.current.on("media-state-change", ({ userId, type, enabled }) => {
171    })
172
173    return () => {
174      socketRef.current?.off("media-state-change")
175    }
176  }, [socketRef.current])
177
178  function createPeer(userId: string, stream: MediaStream, initiator: boolean): SimplePeer.Instance {
179    console.log(`Creating peer connection - initiator: ${initiator}, userId: ${userId}`)
180
181    const peer = new SimplePeer({
182      initiator,
183      trickle: false,
184      stream,
185      config: {
186        iceServers: [
187          { urls: "stun:stun.l.google.com:19302" },
188          { urls: "stun:global.stun.twilio.com:3478" },
189        ],
190      },
191    })
192
193    peer.on("signal", (signal) => {
194      console.log(`Sending signal to ${userId}, type: ${signal.type}`)
195      socketRef.current?.emit("signal", {
196        signal,
197        to: userId,
198        from: user?.id,
199      })
200    })
201
202    peer.on("connect", () => {
203      console.log(`Peer connection established with ${userId}`)
204    })
205
206    peer.on("stream", (incomingStream) => {
207      console.log(`Received stream from ${userId}, tracks:`, incomingStream.getTracks())
208      const peerIndex = peersRef.current.findIndex((p) => p.userId === userId)
209      if (peerIndex !== -1) {
210        peersRef.current[peerIndex].stream = incomingStream
211        setPeers([...peersRef.current])
212      }
213    })
214
215    peer.on("error", (err) => {
216      console.error(`Peer error with ${userId}:`, err)
217      const peerIndex = peersRef.current.findIndex((p) => p.userId === userId)
218      if (peerIndex !== -1) {
219        peersRef.current[peerIndex].peer.destroy()
220        peersRef.current.splice(peerIndex, 1)
221        setPeers([...peersRef.current])
222      }
223    })
224
225    peer.on("close", () => {
226      console.log(`Peer connection closed with ${userId}`)
227    })
228
229    return peer
230  }
231
232  return (
233    <div className="flex flex-col gap-4 p-4">
234      <div className="text-sm text-gray-500">
235        {isConnected ? "Connected to server" : "Disconnected from server"}
236      </div>
237      {/* <ParticipantList /> */}
238      <div className="grid grid-cols-1 md:grid-cols-2 lg:grid-cols-3 gap-4">
239        <div className="relative">
240          <video
241            ref={userVideo}
242            autoPlay
243            muted
244            playsInline
245            className="w-full rounded-lg bg-gray-900"
246          />
247          <div className="absolute bottom-2 left-2 bg-black bg-opacity-50 text-white px-2 py-1 rounded">
248            You
249          </div>
250        </div>
251        {peers.map(({ peer, userId, stream }) => (
252          <PeerVideo key={userId} peer={peer} userId={userId} stream={stream} />
253        ))}
254      </div>
255    </div>
256  )
257}
258
259function PeerVideo({ peer, userId, stream }: { peer: SimplePeer.Instance; userId: string; stream?: MediaStream }) {
260  const ref = useRef<HTMLVideoElement>(null)
261
262  useEffect(() => {
263    if (stream && ref.current) {
264      ref.current.srcObject = stream
265    }
266
267    const handleStream = (incomingStream: MediaStream) => {
268      if (ref.current) {
269        ref.current.srcObject = incomingStream
270      }
271    }
272
273    peer.on("stream", handleStream)
274
275    return () => {
276      if (ref.current) {
277        ref.current.srcObject = null
278      }
279      peer.off("stream", handleStream)
280    }
281  }, [peer, stream])
282
283  return (
284    <div className="relative">
285      <video ref={ref} autoPlay playsInline className="w-full rounded-lg bg-gray-900" />
286      <div className="absolute bottom-2 left-2 bg-black bg-opacity-50 text-white px-2 py-1 rounded">
287      </div>
288    </div>
289  )
290}

Here is what the code above does:

• The above code handles the WebRTC and Socket.IO peer-to-peer video chat. It uses SimplePeer to handle WebRTC connections, maintaining a peers state array, and peersRef to track all connected users.
• The component initializes by getting the user's video and audio stream using getUserMedia, then sets up socket connections with events like join-meeting, signal, user-joined, and user-left to handle real-time communication.
• The createPeer function is the backbone, creating new peer connections with ice servers for NAT traversal while handling various peer events like signal, connect, stream, and error.
• The video streams are displayed using the userVideo ref for the local user and a separate PeerVideo component for remote participants, which manages individual video elements and their streams. It uses socket.current for maintaining the WebSocket connection and handles cleanup using useEffect's return function, ensuring all peer connections are properly destroyed and media streams are stopped when the component unmounts.

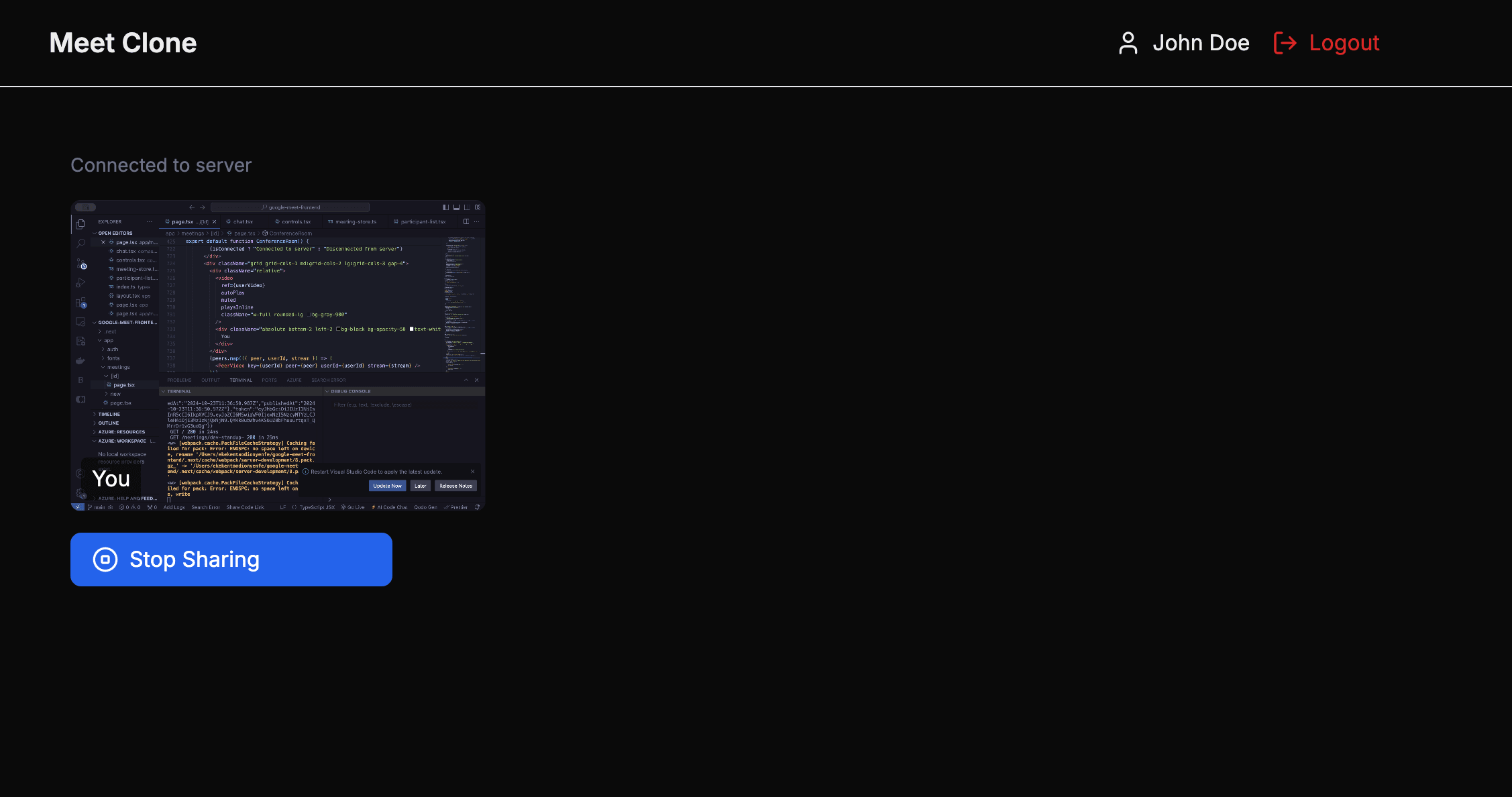

Implementing Screen Sharing

To allow users to share their screen while on the call, let's add screen-sharing functionality to the conference room:

1//...
2import { ScreenShare, StopScreenShare } from 'lucide-react';
3
4interface ExtendedSimplePeer extends SimplePeer.Instance {
5  _pc: RTCPeerConnection;
6}
7
8//...
9export default function ConferenceRoom() {
10  //...
11  const [screenStream, setScreenStream] = useState<MediaStream | null>(null);
12  const [isScreenSharing, setIsScreenSharing] = useState(false);
13
14
15
16  const toggleScreenShare = async () => {
17    if (!isScreenSharing) {
18      try {
19        const screen = await navigator.mediaDevices.getDisplayMedia({
20          video: true,
21          audio: false,
22        });
23
24        // Handle when the user clicks the "Stop sharing" button in the browser
25        screen.getVideoTracks()[0].addEventListener("ended", () => {
26          stopScreenSharing();
27        });
28
29        setScreenStream(screen);
30        setIsScreenSharing(true);
31
32        // Replace video track for all peers
33        peersRef.current.forEach(({ peer }) => {
34          const videoTrack = screen.getVideoTracks()[0];
35          const extendedPeer = peer as ExtendedSimplePeer;
36          const sender = extendedPeer._pc
37            .getSenders()
38            .find((s) => s.track?.kind === "video");
39
40          if (sender) {
41            sender.replaceTrack(videoTrack);
42          }
43        });
44
45        // Replace local video
46        if (userVideo.current) {
47          userVideo.current.srcObject = screen;
48        }
49      } catch (error) {
50        console.error("Error sharing screen:", error);
51      }
52    } else {
53      stopScreenSharing();
54    }
55  };
56
57  const stopScreenSharing = () => {
58    if (screenStream) {
59      screenStream.getTracks().forEach((track) => track.stop());
60      setScreenStream(null);
61      setIsScreenSharing(false);
62
63      // Revert to camera video for all peers
64      if (stream) {
65        peersRef.current.forEach(({ peer }) => {
66          const videoTrack = stream.getVideoTracks()[0];
67          const extendedPeer = peer as ExtendedSimplePeer;
68          const sender = extendedPeer._pc
69            .getSenders()
70            .find((s) => s.track?.kind === "video");
71
72          if (sender) {
73            sender.replaceTrack(videoTrack);
74          }
75        });
76
77        // Revert local video
78        if (userVideo.current) {
79          userVideo.current.srcObject = stream;
80        }
81      }
82    }
83  };
84
85  //...
86
87  return (
88    <div className="flex flex-col gap-4 p-4">
89      <div className="text-sm text-gray-500">
90        {isConnected ? "Connected to server" : "Disconnected from server"}
91      </div>
92      <div className="grid grid-cols-1 md:grid-cols-2 lg:grid-cols-3 gap-4">
93        <div className="relative">
94          <video
95            ref={userVideo}
96            autoPlay
97            muted
98            playsInline
99            className="w-full rounded-lg bg-gray-900"
100          />
101          <div className="absolute bottom-2 left-2 bg-black bg-opacity-50 text-white px-2 py-1 rounded">
102            You
103          </div>
104        </div>
105        {peers.map(({ peer, userId, stream }) => (
106            <PeerVideo key={userId} peer={peer} userId={userId} stream={stream} />
107        ))}
108      </div>
109      {/* added this button to handle the start screen and stop sharing. */}
110
111      <button
112        onClick={toggleScreenShare}
113        className="flex items-center gap-2 px-4 py-2 bg-blue-600 text-white rounded-lg hover:bg-blue-700 transition-colors"
114        style={{ width: "15rem" }}
115      >
116        {isScreenSharing ? (
117          <>
118            <StopCircleIcon className="w-5 h-5" />
119            Stop Sharing
120          </>
121        ) : (
122          <>
123            <ScreenShare className="w-5 h-5" />
124            Share Screen
125          </>
126        )}
127      </button>
128      //
129    </div>
130  );
131}

In the above code:

• We added toggleScreenShare and stopScreenSharing functions, where toggleScreenShare uses navigator.mediaDevices.getDisplayMedia to capture the user's screen as a MediaStream, storing it in screenStream state and tracking its status with isScreenSharing.
• When screen sharing is activated, it replaces the video tracks for all peer connections using RTCPeerConnection's getSenders().replaceTrack method, changing what each participant sees from camera to screen content.
• The stopScreenSharing function handles the cleanup by stopping all screen-sharing tracks and reverting everyone to camera video.

Adding Real-Time Chat

Next, let's add a chat functionality to allow users to chat in real time while on the call.

Create Chat Component

Create a chat component in src/components/meeting/chat.tsx:

1"use client";
2
3import { useState, useEffect, useRef } from "react";
4import { useAuthStore } from "@/store/auth-store";
5import { Socket } from "socket.io-client";
6import { User } from "@/types";
7
8interface ChatProps {
9  socketRef: React.MutableRefObject<Socket | undefined>; // Changed from RefObject to MutableRefObject
10  user: User;
11  meetingId: string;
12}
13
14interface Message {
15  userId: string;
16  username: string;
17  text: string;
18  timestamp: number;
19}
20
21function Chat({ socketRef, user, meetingId }: ChatProps) {
22  const [messages, setMessages] = useState<Message[]>([]);
23  const [newMessage, setNewMessage] = useState("");
24  const [isExpanded, setIsExpanded] = useState(true);
25  const chatRef = useRef<HTMLDivElement>(null);
26
27  useEffect(() => {
28    const socket = socketRef.current;
29    if (!socket) return;
30
31    const handleChatMessage = (message: Message) => {
32      setMessages((prev) => [...prev, message]);
33    };
34
35    socket.on("chat-message", handleChatMessage);
36
37    return () => {
38      socket?.off("chat-message", handleChatMessage);
39    };
40  }, [socketRef.current]);
41
42  useEffect(() => {
43    if (chatRef.current) {
44      chatRef.current.scrollTop = chatRef.current.scrollHeight;
45    }
46  }, [messages]);
47
48  const sendMessage = (e: React.FormEvent) => {
49    e.preventDefault();
50    const socket = socketRef.current;
51    if (!socket || !newMessage.trim()) return;
52
53    const message: Message = {
54      userId: user.id.toString(),
55      username: user.username,
56      text: newMessage,
57      timestamp: Date.now(),
58    };
59
60    socket.emit("chat-message", {
61      message,
62      meetingId,
63    });
64
65    setMessages((prev) => [...prev, message]);
66    setNewMessage("");
67  };
68
69  return (
70    <div className="fixed right-4 bottom-4 w-80 bg-white rounded-lg shadow-lg flex flex-col border">
71      <div
72        className="p-3 border-b flex justify-between items-center cursor-pointer"
73        onClick={() => setIsExpanded(!isExpanded)}
74      >
75        <h3 className="font-medium text-gray-600">Chat</h3>
76        <button className="text-gray-500 hover:text-gray-700">
77          {isExpanded ? "▼" : "▲"}
78        </button>
79      </div>
80
81      {isExpanded && (
82        <>
83          <div
84            ref={chatRef}
85            className="flex-1 overflow-y-auto p-4 space-y-4 max-h-96"
86          >
87            {messages.map((message, index) => (
88              <div
89                key={index}
90                className={`flex ${
91                  message.userId === user.id.toString()
92                    ? "justify-end"
93                    : "justify-start"
94                }`}
95              >
96                <div
97                  className={`max-w-xs px-4 py-2 rounded-lg ${
98                    message.userId === user.id.toString()
99                      ? "bg-blue-600 text-white"
100                      : "bg-gray-400"
101                  }`}
102                >
103                  {message.userId !== user.id.toString() && (
104                    <p className="text-xs font-medium mb-1">
105                      {message.username}
106                    </p>
107                  )}
108                  <p className="break-words">{message.text}</p>
109                  <span className="text-xs opacity-75 block mt-1">
110                    {new Date(message.timestamp).toLocaleTimeString()}
111                  </span>
112                </div>
113              </div>
114            ))}
115          </div>
116
117          <form onSubmit={sendMessage} className="p-4 border-t">
118            <div className="flex gap-2">
119              <input
120                type="text"
121                value={newMessage}
122                onChange={(e) => setNewMessage(e.target.value)}
123                className="flex-1 px-3 py-2 border rounded-lg text-gray-600 focus:outline-none focus:ring-2 focus:ring-blue-500"
124                placeholder="Type a message..."
125              />
126              <button
127                type="submit"
128                className="px-4 py-2 bg-blue-600 rounded-lg hover:bg-blue-700 transition-colors"
129                disabled={!newMessage.trim()}
130              >
131                Send
132              </button>
133            </div>
134          </form>
135        </>
136      )}
137    </div>
138  );
139}
140
141
142export default Chat;

Broadcast Chat to All Connected Clients with Strapi

Now update your Strapi socket service in your api/socket/services/socket.ts file to broadcast the chat to all connected clients in the meeting.

1//...
2socket.on("chat-message", ({ message, meetingId }) => {
3   socket.to(meetingId).emit("chat-message", message);
4});
5//...

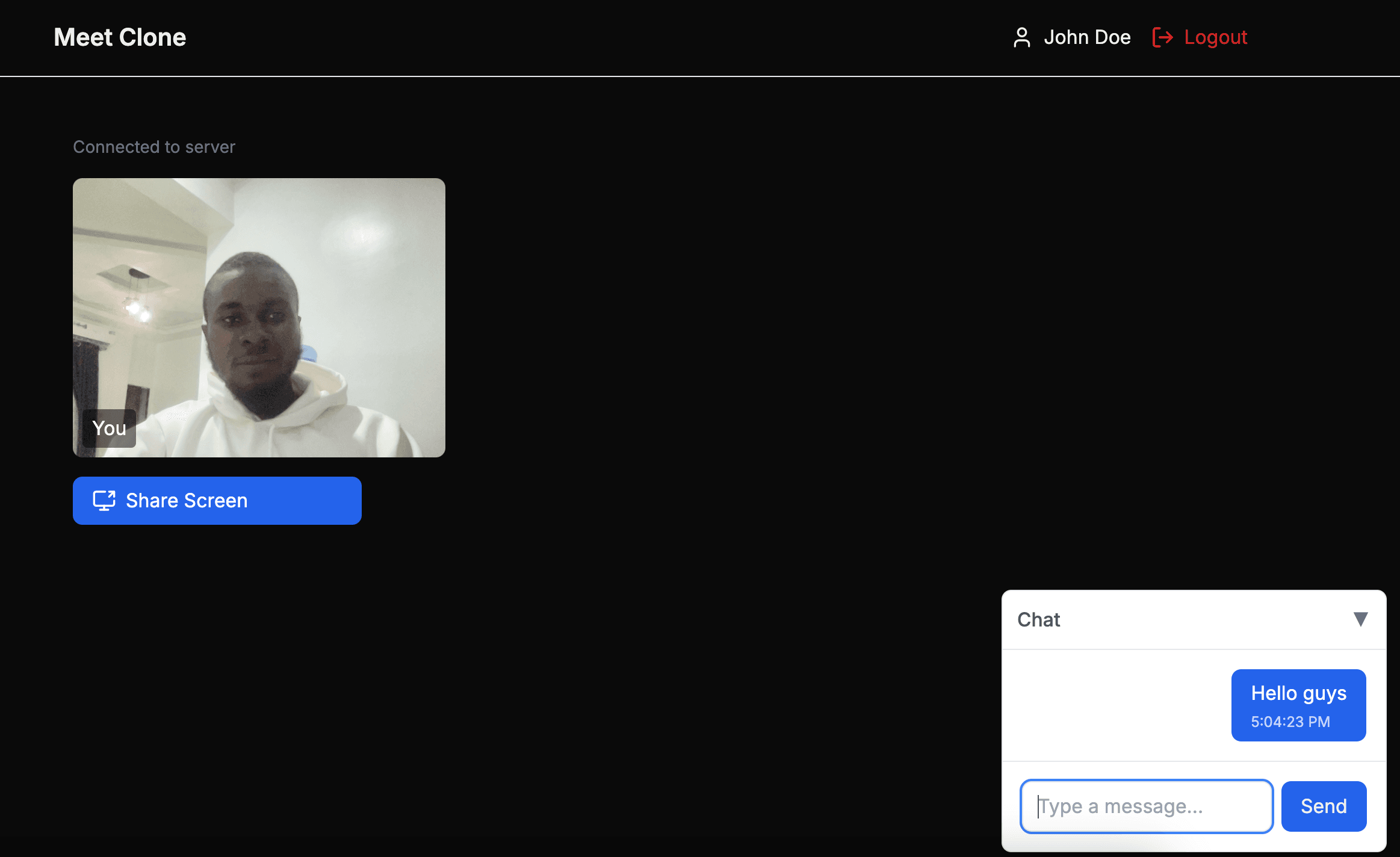

Render Chat Component

Then update your app/meetings/[id]/page.tsx file to render the Chat component in your return statement:

1//...
2import Chat from "@/components/meeting/chat";
3
4//...
5
6export default function ConferenceRoom() {
7
8  //...
9  return (
10    <div className="flex flex-col gap-4 p-4">
11      <div className="text-sm text-gray-500">
12        {isConnected ? "Connected to server" : "Disconnected from server"}
13      </div>
14      <div className="grid grid-cols-1 md:grid-cols-2 lg:grid-cols-3 gap-4">
15        <div className="relative">
16          <video
17            ref={userVideo}
18            autoPlay
19            muted
20            playsInline
21            className="w-full rounded-lg bg-gray-900"
22          />
23          <div className="absolute bottom-2 left-2 bg-black bg-opacity-50 text-white px-2 py-1 rounded">
24            You
25          </div>
26        </div>
27        {peers.map(({ peer, userId, stream }) => (
28          <PeerVideo key={userId} peer={peer} userId={userId} stream={stream} />
29        ))}
30      </div>
31      <button
32        onClick={toggleScreenShare}
33        className="flex items-center gap-2 px-4 py-2 bg-blue-600 text-white rounded-lg hover:bg-blue-700 transition-colors"
34        style={{ width: "15rem" }}
35      >
36        {isScreenSharing ? (
37          <>
38            <StopCircleIcon className="w-5 h-5" />
39            Stop Sharing
40          </>
41        ) : (
42          <>
43            <ScreenShare className="w-5 h-5" />
44            Share Screen
45          </>
46        )}
47      </button>
48      <Chat
49        socketRef={socketRef}
50        user={user as User}
51        meetingId={params.id as string}
52      />{" "}
53    </div>
54  );
55}

Setting up Meeting Controls

Now let's take things a little bit further and make our app look more like Google Meet.

Let's have a central control for video conferencing and add features like muting and unmuting the mic, turning the video off and on, screen sharing, and leaving the meeting.

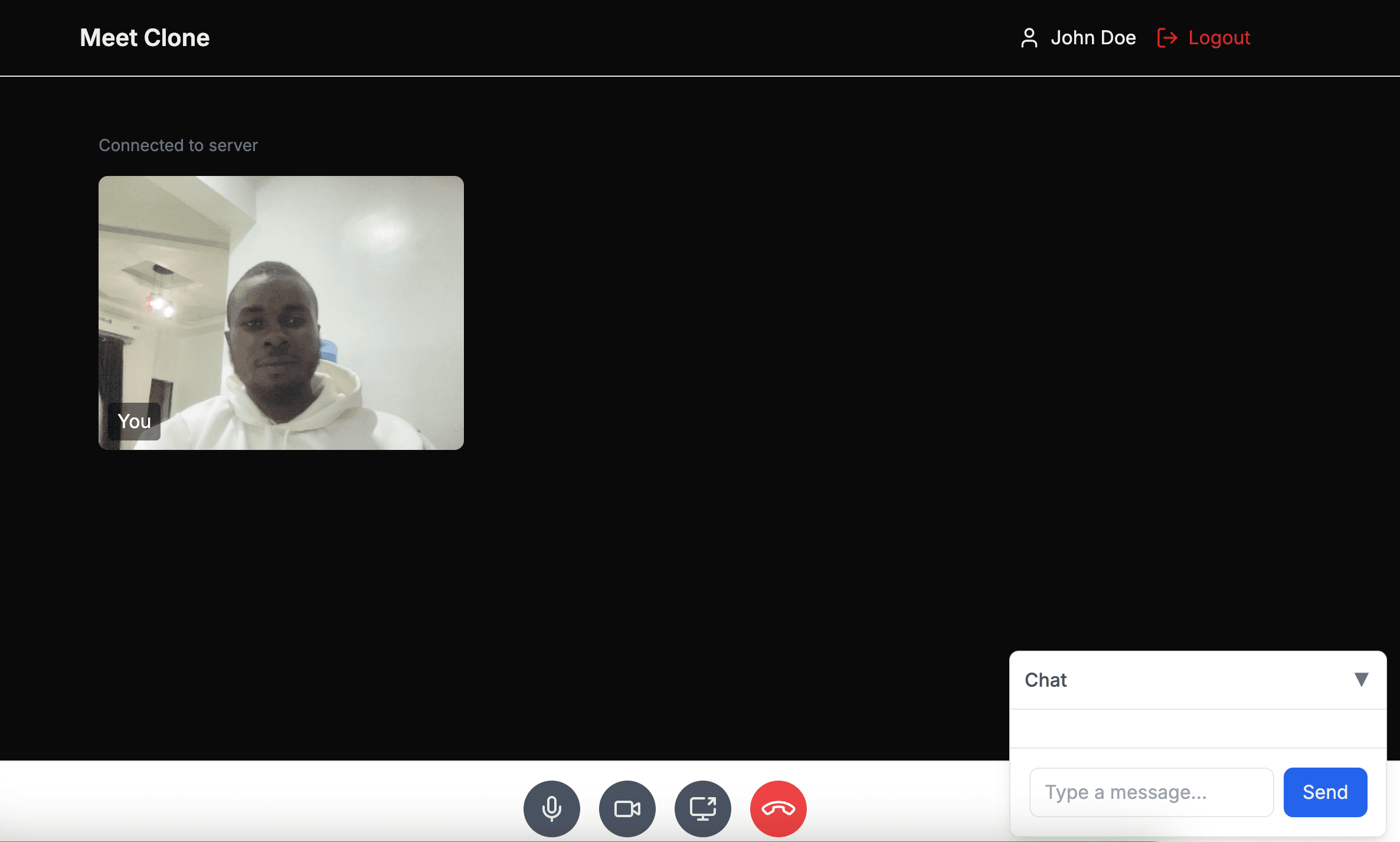

Create The Controls Component

Create a controls component in src/components/meeting/controls.tsx:

1import { useRouter } from 'next/navigation';
2import {
3  Mic,
4  MicOff,
5  Video,
6  VideoOff,
7  ScreenShare,
8  StopCircleIcon,
9  Phone,
10} from 'lucide-react';
11import { Socket } from 'socket.io-client';
12import { useState } from 'react';
13
14interface ControlsProps {
15  stream: MediaStream | null;
16  screenStream: MediaStream | null;
17  isScreenSharing: boolean;
18  socketRef: React.MutableRefObject<Socket | undefined>;
19  peersRef: React.MutableRefObject<any[]>;
20  meetingId: string;
21  userId: string;
22  onScreenShare: () => Promise<void>;
23}
24
25export default function Controls({
26  stream,
27  screenStream,
28  isScreenSharing,
29  socketRef,
30  peersRef,
31  meetingId,
32  userId,
33  onScreenShare,
34}: ControlsProps) {
35  const router = useRouter();
36  const [isAudioEnabled, setIsAudioEnabled] = useState(true);
37  const [isVideoEnabled, setIsVideoEnabled] = useState(true);
38
39  const toggleAudio = () => {
40    if (stream) {
41      stream.getAudioTracks().forEach((track) => {
42        track.enabled = !isAudioEnabled;
43      });
44      setIsAudioEnabled(!isAudioEnabled);
45
46      // Notify peers about audio state change
47      socketRef.current?.emit('media-state-change', {
48        meetingId,
49        userId,
50        type: 'audio',
51        enabled: !isAudioEnabled,
52      });
53    }
54  };
55
56  const toggleVideo = () => {
57    if (stream) {
58      stream.getVideoTracks().forEach((track) => {
59        track.enabled = !isVideoEnabled;
60      });
61      setIsVideoEnabled(!isVideoEnabled);
62
63      // Notify peers about video state change
64      socketRef.current?.emit('media-state-change', {
65        meetingId,
66        userId,
67        type: 'video',
68        enabled: !isVideoEnabled,
69      });
70    }
71  };
72
73  const handleLeave = () => {
74    // Stop all tracks
75    if (stream) {
76      stream.getTracks().forEach(track => track.stop());
77    }
78    if (screenStream) {
79      screenStream.getTracks().forEach(track => track.stop());
80    }
81
82    // Clean up peer connections
83    peersRef.current.forEach(peer => {
84      if (peer.peer) {
85        peer.peer.destroy();
86      }
87    });
88
89    // Notify server
90    socketRef.current?.emit('leave-meeting', {
91      meetingId,
92      userId,
93    });
94
95    // Disconnect socket
96    socketRef.current?.disconnect();
97    router.push('/meetings');
98  };
99
100  return (
101    <div className="fixed bottom-0 left-0 right-0 bg-white border-t p-4 shadow-lg">
102      <div className="max-w-4xl mx-auto flex justify-center gap-4">
103        <button
104          onClick={toggleAudio}
105          className={`p-3 rounded-full transition-colors ${
106            isAudioEnabled
107              ? 'bg-gray-600 hover:bg-gray-500'
108              : 'bg-red-500 hover:bg-red-600 text-white'
109          }`}
110          title={isAudioEnabled ? 'Mute' : 'Unmute'}
111        >
112          {isAudioEnabled ? <Mic size={24} /> : <MicOff size={24} />}
113        </button>
114
115        <button
116          onClick={toggleVideo}
117          className={`p-3 rounded-full transition-colors ${
118            isVideoEnabled
119              ? 'bg-gray-600 hover:bg-gray-500'
120              : 'bg-red-500 hover:bg-red-600 text-white'
121          }`}
122          title={isVideoEnabled ? 'Stop Video' : 'Start Video'}
123        >
124          {isVideoEnabled ? <Video size={24} /> : <VideoOff size={24} />}
125        </button>
126
127        <button
128          onClick={onScreenShare}
129          className={`p-3 rounded-full transition-colors ${
130            isScreenSharing
131              ? 'bg-blue-500 hover:bg-blue-600 text-white'
132              : 'bg-gray-600 hover:bg-gray-600'
133          }`}
134          title={isScreenSharing ? 'Stop Sharing' : 'Share Screen'}
135        >
136          {isScreenSharing ? (
137            <StopCircleIcon size={24} />
138          ) : (
139            <ScreenShare size={24} />
140          )}
141        </button>
142
143        <button
144          onClick={handleLeave}
145          className="p-3 rounded-full bg-red-500 hover:bg-red-600 text-white transition-colors"
146          title="Leave Meeting"
147        >
148          <Phone size={24} className="rotate-[135deg]" />
149        </button>
150      </div>
151    </div>
152  );
153}
