Deep dive into Strapi's Architecture

Eight years ago, a trio of freelancing developers students—Pierre, Aurélien, and Jim—set out to solve a pressing problem: traditional CMSs like WordPress weren't cutting it for modern web development, particularly mobile and front-end frameworks that were rapidly evolving. Their solution? Building Strapi, a blend of an API building framework and a CMS, designed to be both robust and adaptable.

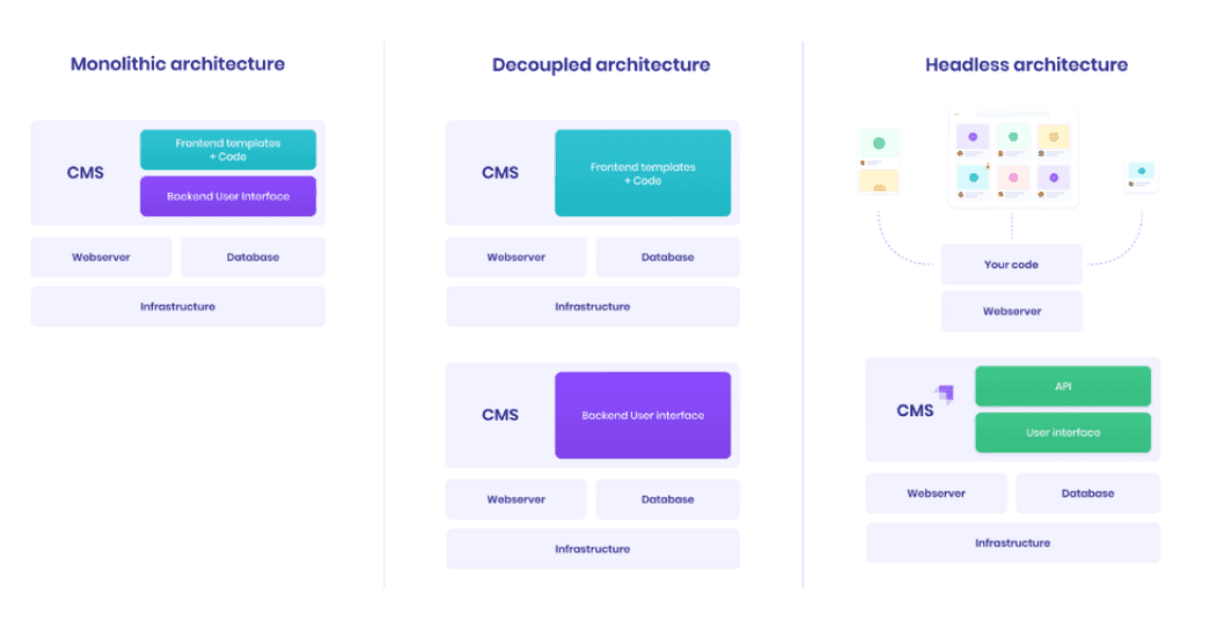

And unlike a monolithic CMS where the front-end and back-end are tightly coupled, Strapi introduces a headless architecture. How does this architecture work together to provide such flexibility? Let's dive into Strapi’s architecture!

Overview of Strapi's Architecture

Headless architecture here means that the back-end -- your content management and API delivery -- is separate from the front-end presentation. This separation gives developers the freedom to use any front-end they choose, be it React, Vue.js, Angular, or even frameworks designed for mobile apps.

Strapi's architecture is decomposed into several independent but interconnected services. At its core, Strapi is built on a modern JavaScript stack, leveraging Node.js, Koa, and React, among other technologies. It also operates on a modular architecture that houses various registries, a dynamic plugin system, and an extensible API framework.

Server initialization and core API zone

The server initialization is the critical bootstrapping phase where Strapi's application server, based on Node.js and Koa, springs into action. It involves setting up the server configuration, initializing the database connections, and preparing the middleware stack that will process incoming HTTP requests.

Server (node.js) and Middleware

At this phase, Koa serves as our main backbone, offering a more direct way to implement server logic with its middleware-centric approach. Middleware in Strapi is crucial; it processes every incoming request, handling tasks such as CORS, body parsing, session management, and error handling. Strapi's middleware is extendable, allowing developers to insert custom logic into the request/response cycle. We also use Helmet for security, and Knex.js for talking to the database.

Policies and hooks registries

Strapi introduces policies and hooks as a means to interject custom logic at various points of the application flow. The policies registry holds a collection of functions that can be executed before an action in a controller, acting as gatekeepers. Hooks, on the other hand, provide a way to modify core features or add new ones, enabling integrations and custom behaviors. They act as middleware, but they are tailored to do specific things and don't just act as generic middleware.

Content API

Within the Core API Zone, we encounter the Content API, which is the essence of Strapi's content management capabilities. This segment deals with the CRUD operations defined by the content types. It consists of controllers that handle the routing and processing of requests, services that encapsulate the business logic, and the entity service that interacts with the database layer.

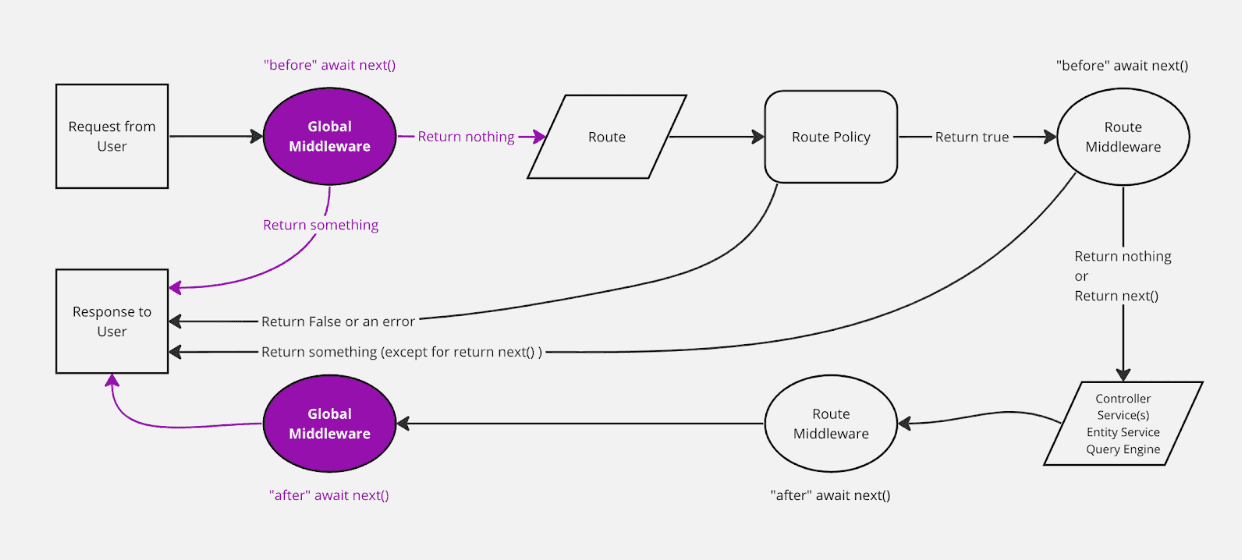

The flow within Strapi begins at the route, guiding requests to their respective policies. After passing through any Route Policies that apply, the request is handled by Route Middleware for tasks such as authentication or payload processing. The request is then handed off to the Controller, specifically a Koa handler, to orchestrate the next steps.

Inside the Controller, the logic unfolds, tasking the Service to manage business-specific actions. The Service then engages the EntityService for any data manipulation, which, in turn, communicates with the QueryEngine. This engine smartly constructs queries that are executed via Knex.js, ensuring the data interacts seamlessly with the database.

Plugin API Zone

The Plugin API Zone is the modular heart of Strapi, empowering developers to tailor the CMS to their needs without altering the core codebase. Each plugin can introduce new functionalities or extend existing ones. They are registered within the system during server initialization, enabling them to integrate seamlessly into Strapi's core. This registry system ensures that plugins are easily accessible and manageable across the application.

Plugins interact with Strapi's core by hooking into the server's lifecycle events, registering new controllers, services, routes, and even UI components. They communicate with the main architecture through well-defined interfaces, ensuring that core updates do not break plugin functionality.

Database layers and data flow

Strapi's database layer is an abstraction over the actual data storage system, which could be SQL databases like PostgreSQL, SQLite, MariaDB and MySQL.

ORM and query engine

Strapi has evolved its approach to database interactions, moving away from the Waterline ORM used in earlier versions to a more sophisticated and flexible system in Strapi v4. The platform now employs a custom-built query engine, designed specifically for an agnostic interaction with both SQL and NoSQL databases. This transition aligns Strapi's database interactions more closely with the databases' native query languages. The engine effectively translates queries from Strapi's service layer into the specific commands required by the chosen database, enabling developers to perform Create, Read, Update, and Delete (CRUD) operations using JavaScript. This significant shift from Waterline to a custom query engine marks an advancement in Strapi's capability, simplifying the development process while enhancing its adaptability and performance across various database systems.

Lifecycle hooks

Lifecycle hooks are integrated into this layer, providing a means to execute custom logic at predefined points in the data handling process, such as before or after saving a record.

When services require data operations, they utilize the entity service's ORM to communicate with the database. This interaction abstracts the complexities of direct database manipulation, providing a unified codebase that can interact with multiple database types. Lifecycle hooks add another layer of interaction, allowing developers to run custom code during data processing events.

The journey of a request, from start to finish

To illustrate how all these elements come together in Strapi, let's trace the journey of a request to create a new blog post:

1. The request begins with the client–a web browser or a front-end framework–sending an HTTP POST request to Strapi's server to create a new blog post.
2. The server receives the request and passes it through the global middleware, which performs initial checks, parses the request body, and sets the stage for routing.
3. The router then takes over, analyzing the request path and method to delegate the request to the corresponding controller for blog posts.
4. The blog post controller springs into action, validating the incoming data against the blog post content type schema. If all checks out, it calls the blog post service.
5. The service, which contains the business logic for creating a blog post, communicates with the entity service to interact with the database.
6. Before the database operation is executed, the entity validator performs one last check to ensure data integrity.
7. Once validated, the entity service uses the ORM/ODM to translate the operation into a database query and executes it, persisting the new blog post.
8. Finally, the service returns the result to the controller, which then sends a response back to the client, confirming the creation of the blog post.

Benefits of Strapi Architecture

Strapi addresses core concerns: scalability, flexibility, and security.

Scalability and Performance

Strapi handles high volumes of traffic and data efficiently, supporting scalable API management.

Flexibility and Customization

Strapi allows extensive customization, enabling tailored CMS solutions.

Integration Capabilities

Strapi integrates with existing systems and services, ensuring smooth transitions.

Security

Strapi includes robust security measures, safeguarding data and user information.

Ease of Management

Strapi's user-friendly interface simplifies content management for all stakeholders.

How to Implement Strapi Architecture in Projects

Implementing Strapi's architecture involves setting up the environment, configuring APIs, designing content types, and integrating external systems. This ensures a smooth integration into your tech stack.

Tips for Optimizing Strapi Architecture

Enhance performance with caching strategies and CDNs. Secure your application with role-based access control and regular updates. Simplify content management with the Media Library and custom workflows.

Wrap up and invitation

Diving into the inner workings of Strapi has been quite the journey. We've peeled back the layers to reveal not just the 'what' but the 'how' and 'why' of our architecture. As we continue to shape Strapi, it's the curiosity and collaboration from developers like you that drive us forward.

Every line of code is an open invitation: come and see how we've built this, tweak it, break it, rebuild it. It's in these interactions that Strapi grows stronger and more attuned to real-world applications.

We're not just handing you a tool; we're handing over the blueprints too. Whether you're integrating a new database or crafting a plugin to extend Strapi's core functionalities, we want you to feel empowered to make Strapi your own.

So, take this architecture deep dive as a starting point. Your insights, questions, and contributions are what make Strapi not just a product but a living, evolving community project. Let's keep the dialogue open and the ideas flowing. Happy coding!
