Strapi plugin logo for Entity Relationship Chart

Entity Relationship Chart

Generates and displays Entity Relationship Diagram of all Strapi models, fields and relations.

thumbnail for Entity Relationship Chart

Strapi plugin Entity Relationship Chart

Plugin displays Entity Relationship Diagram of all Strapi models, fields and relations.

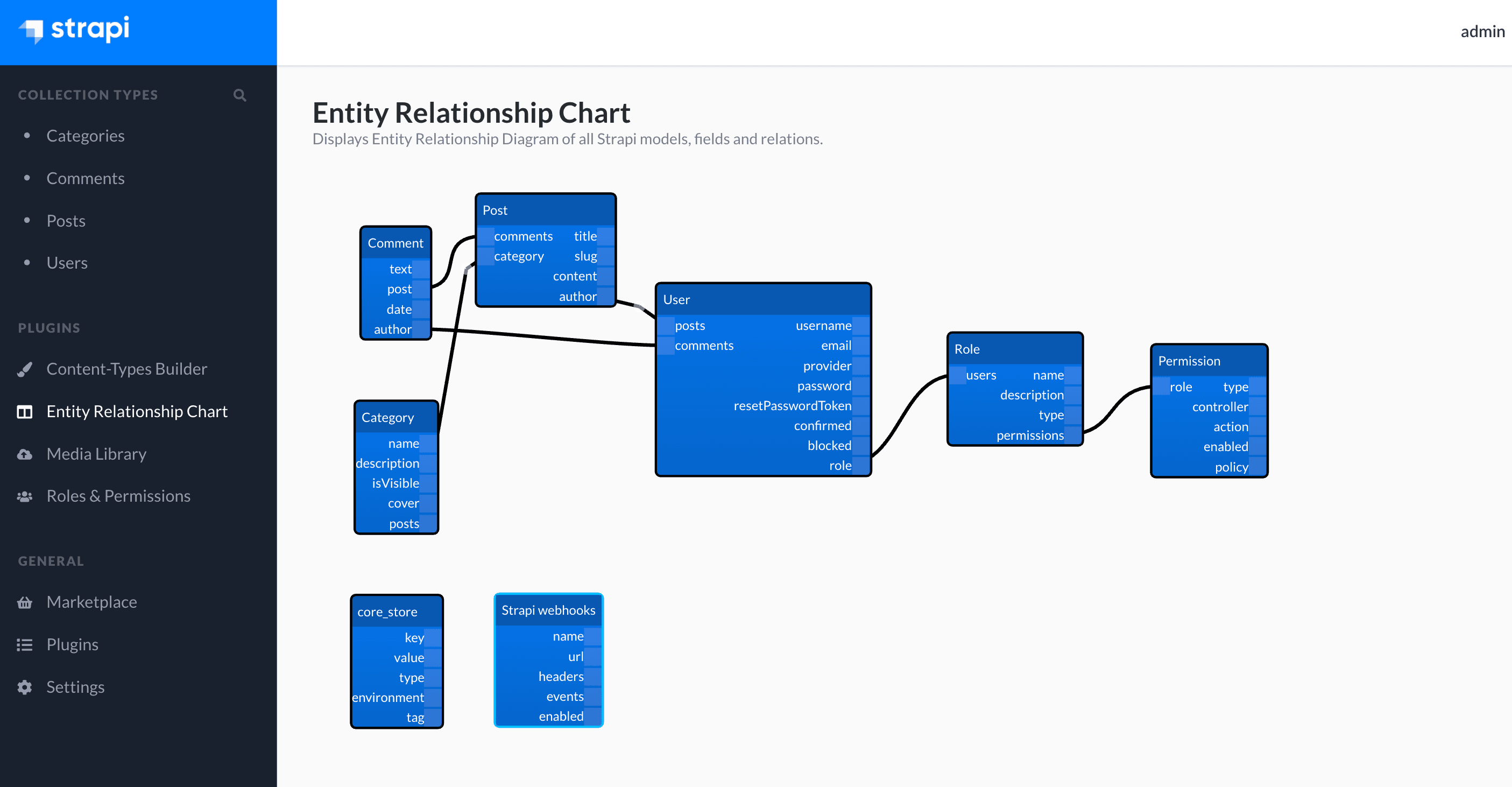

Preview

How to install:

  1. In a root folder of your strapi project run npm install strapi-plugin-entity-relationship-chart --save
  2. Rebuild admin UI strapi build
  3. Run strapi strapi develop

Exclude models from chart

You can exclude contentTypes or components from the chart by adding their ids to exclude plugin configuration property:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
// file: config/plugins.js
"use strict";

module.exports = () => ({
  // ...
  "entity-relationship-chart": {
    enabled: true,
    config: {
      // By default all contentTypes and components are included.
      // To exlclude strapi's internal models, use:
      exclude: [
        "strapi::core-store",
        "webhook",
        "admin::permission",
        "admin::user",
        "admin::role",
        "admin::api-token",
        "plugin::upload.file",
        "plugin::i18n.locale",
        "plugin::users-permissions.permission",
        "plugin::users-permissions.role",
      ],
    },
  },
  // ...
});

Submitting issues:

Use github issues on the repo: - https://github.com/node-vision/strapi-plugin-entity-relationship-chart/issues

Version Notes:

  • this plugin was tested with stable Strapi - 4.0.6

Install now

npm install strapi-plugin-entity-relationship-chart
