Build an Inventory Management App with TanStack Start & Strapi 5

Introduction

Keeping track of inventory can be a challenge, even for small businesses, but with the right tools, it doesn’t have to be. Instead of having to deal with spreadsheets for your inventories, why not build a flexible inventory management system that fits your needs?

In this guide, we’ll walk through the process of building an Inventory Management System using Strapi as the backend and React with TanStack for the frontend.

Features of the inventory system

• Store and manage inventory records.
• List inventory items.
• Add inventory items with form validation and and delete inventory items.
• View detailed information for each inventory item.

By the end, you’ll have a fully functional inventory system that’s easy to use, scalable, and customizable.

Let’s get started.

Overview of Tech Stack

Backend

We will use Strapi 5 to manage inventory data, categories, and user roles.

Frontend

• React: Frontend framework for UI development.
• TanStack Table: Displays inventory in a sortable, paginated table.
• TanStack Form: Manages inventory registration and updates.
• TanStack Router: Manages routing between main page, inventory list and any other pages we have.

Setting Up Strapi as Backend for the Inventory Management

Install Strapi 5

First, we'll create a project directory for our app:

mkdir inventory-sys
cd inventory-sys

Then, we'll install Strapi globally and create a new project using one of the following commands:

npx create-strapi@latest backend --quickstart
OR
yarn create strapi-app@latest backend --quickstart

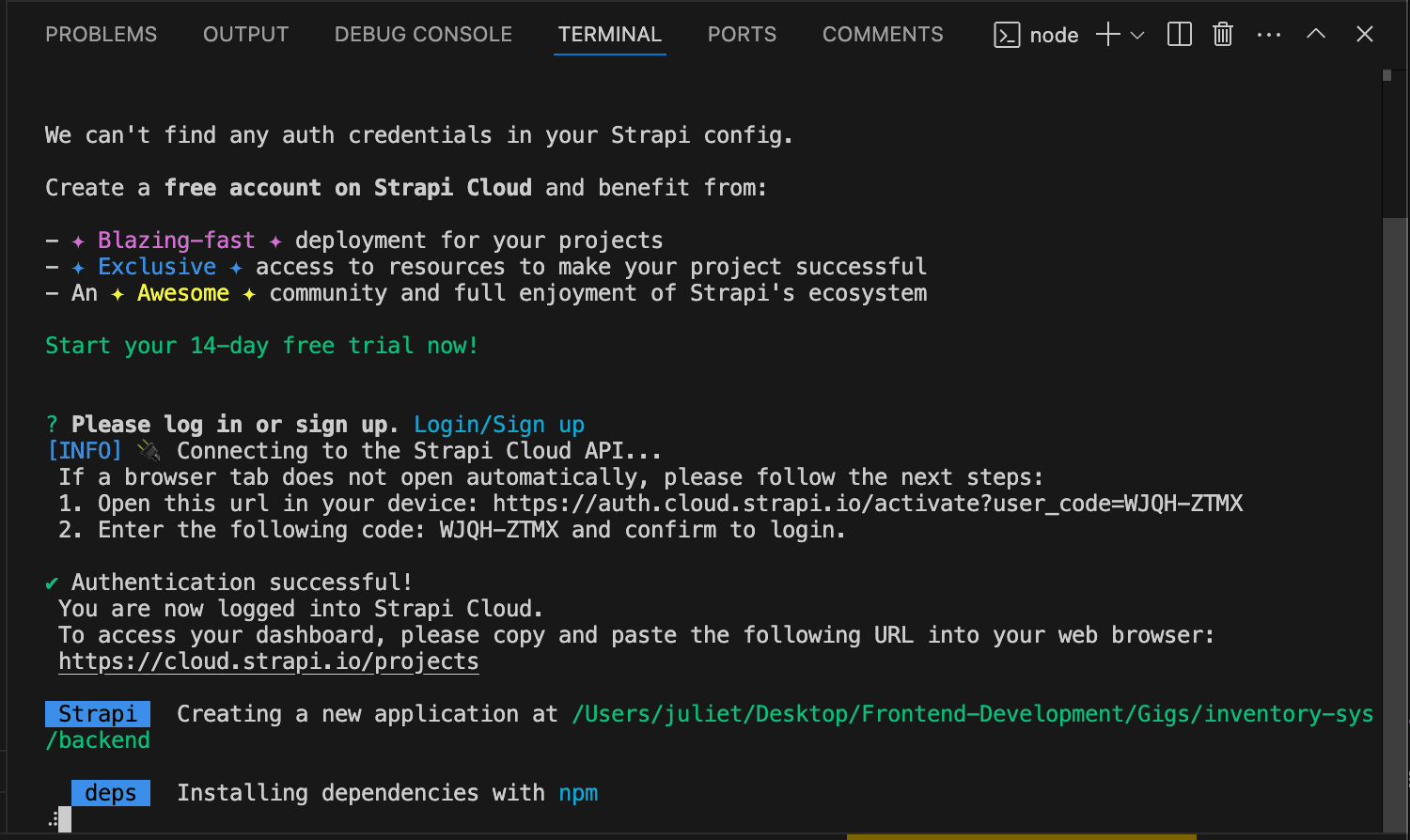

We'll proceed with the installation and login to our Strapi account when prompted (you'll have to signup instead if this is your first time using Strapi).

This process will create a new Strapi 5 project in the inventory-sys folder.

After that, navigate to the project folder using cd backend.

If you're not automatically directed to the Strapi panel on your browser, use this command to start up the Strapi server:

npm run develop
OR
yarn develop

We'll input our details, including name, email, and password to assess your admin panel when prompted to login.

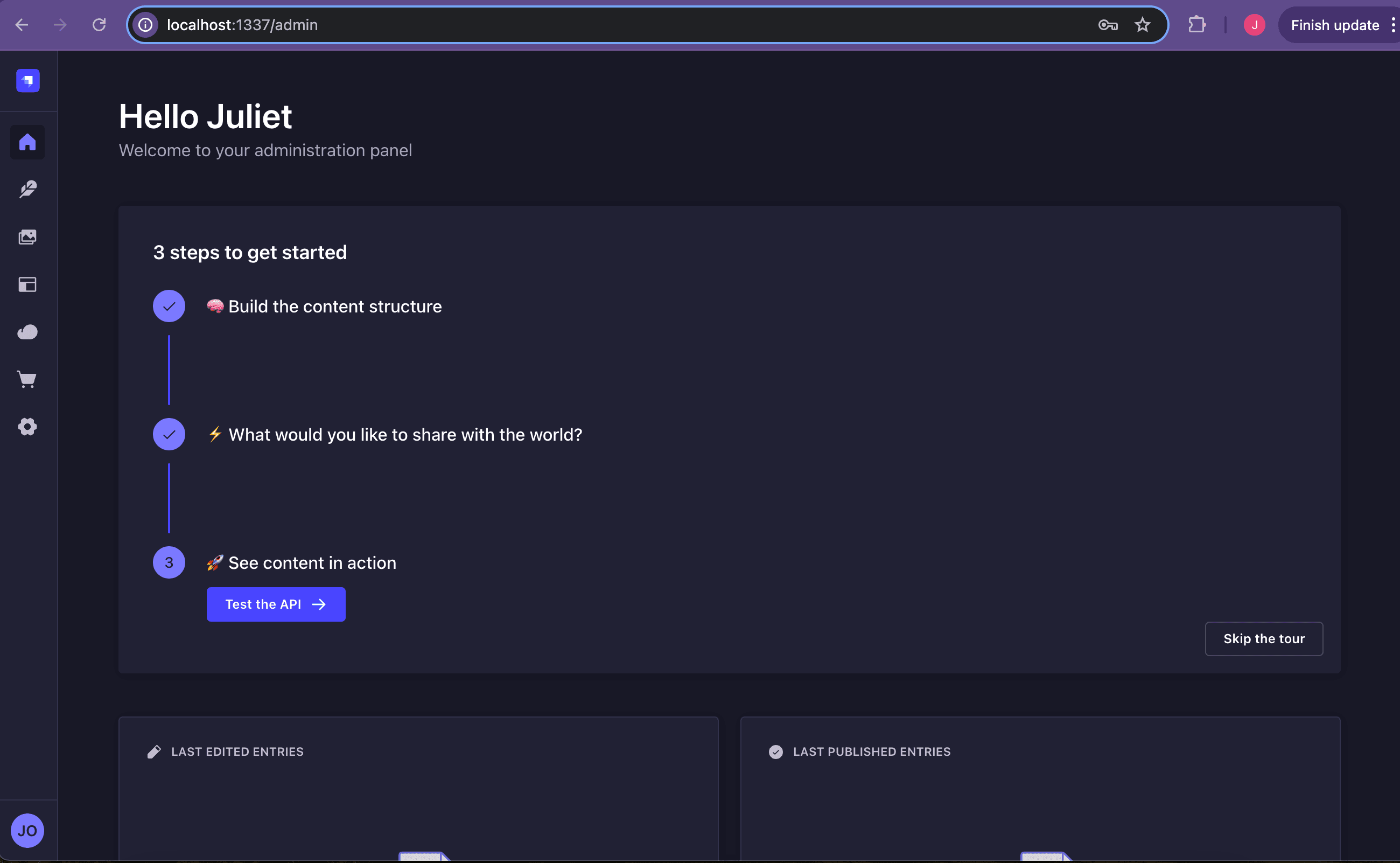

The Strapi admin dashboard of our newly created project will open up at the url provided in the terminal: http://localhost:1337/admin.

Now we're ready to perform other actions such as creating collection types, managing collection, and configuring settings for roles and permissions.

Create the Inventory Collection Type

In the Strapi admin panel, create a collection type named Inventory by navigating to the Content-Type Builder page.

We'll click the Create new collection type and create our collection with the following fields:

We'll then save it and wait for our changes to take effect.

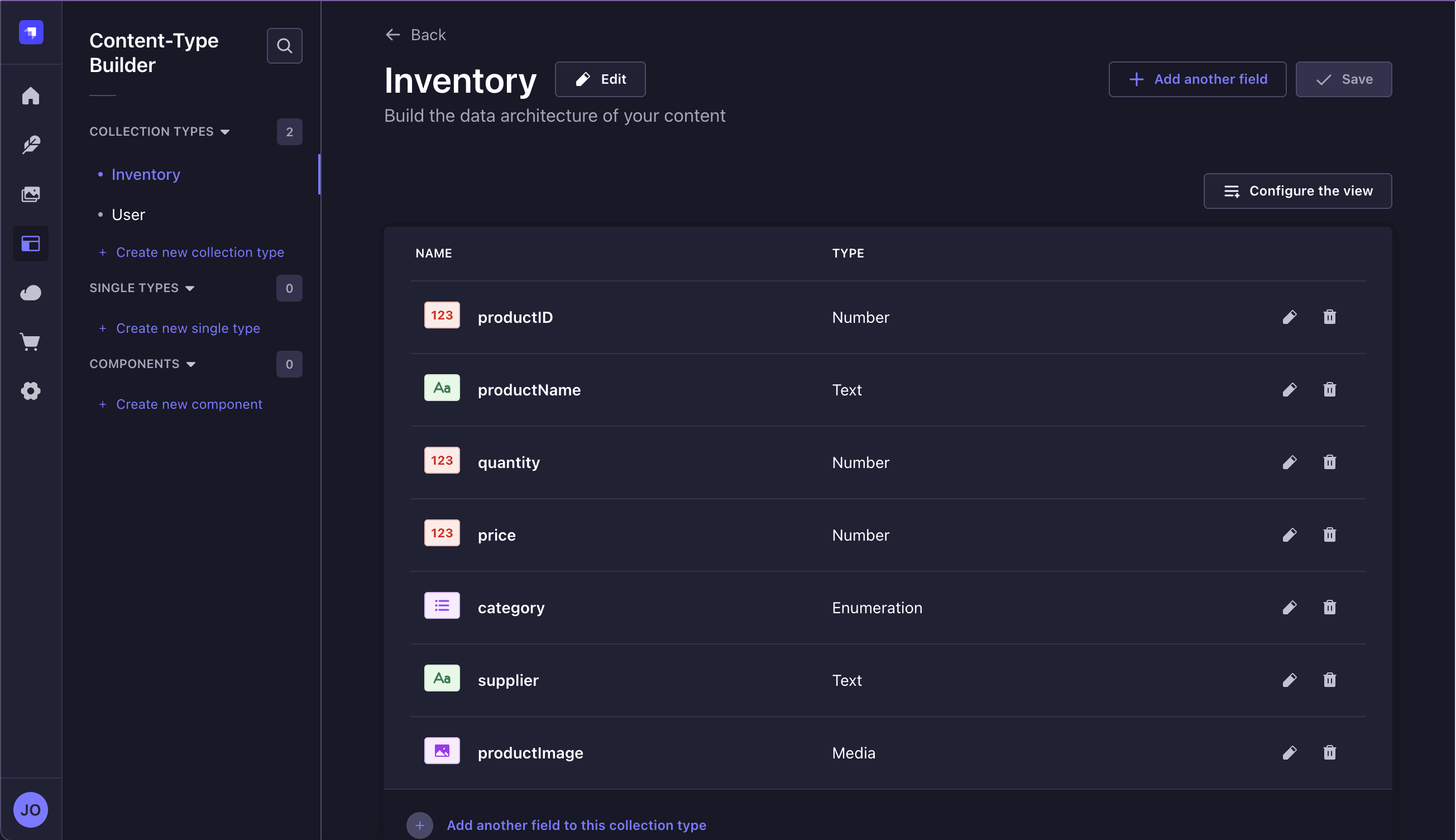

We'll see the newly created collection and its fields, like this:

Create Entries for Collections

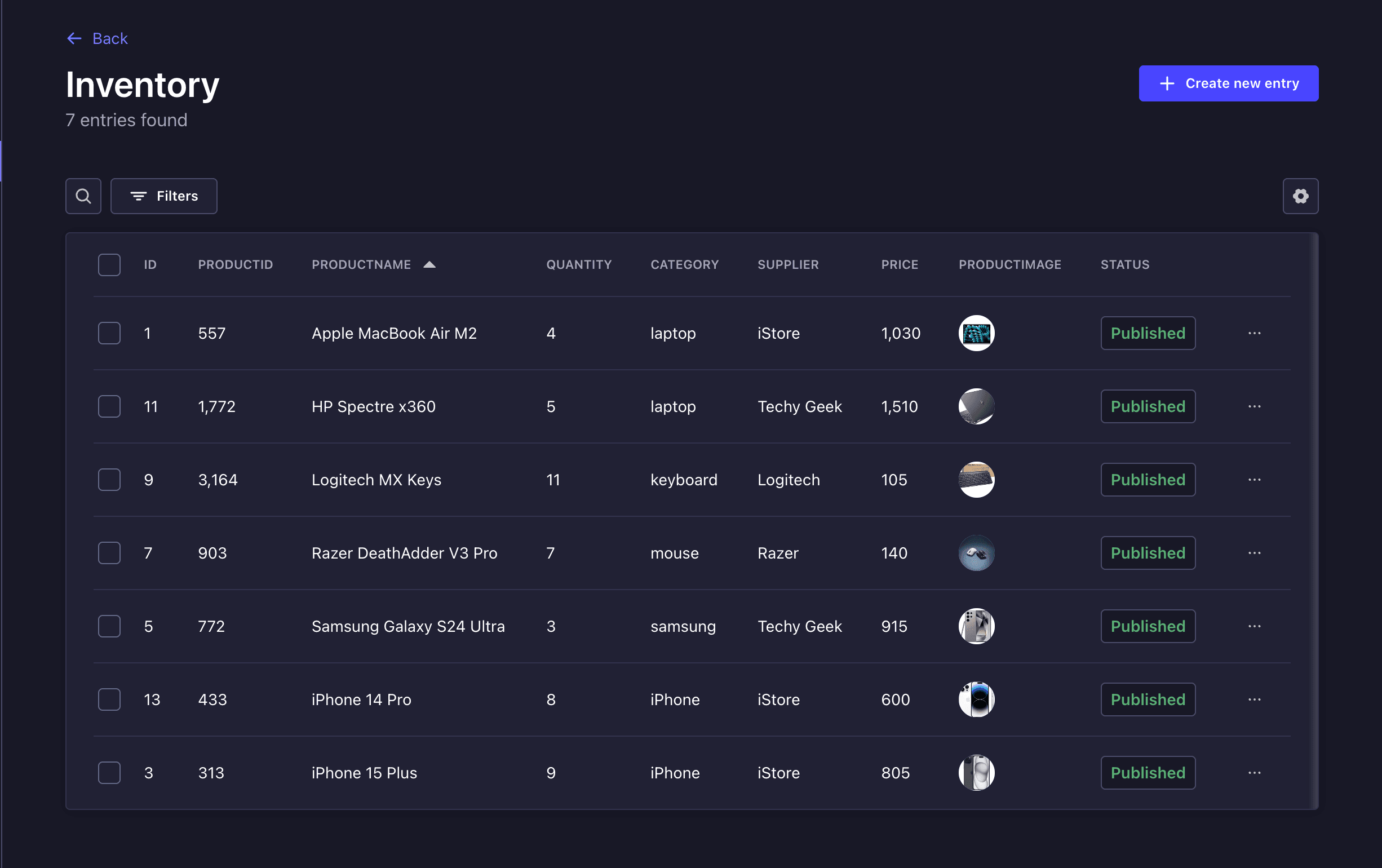

In our Inventory collection, let's create some entries in each of the fields.

We'll navigate to the "Content Manager" page and click on the Create new entry button at the top-right corner of the page.

After that, proceed to creating new Inventory entries.

Enable Strapi API Permission

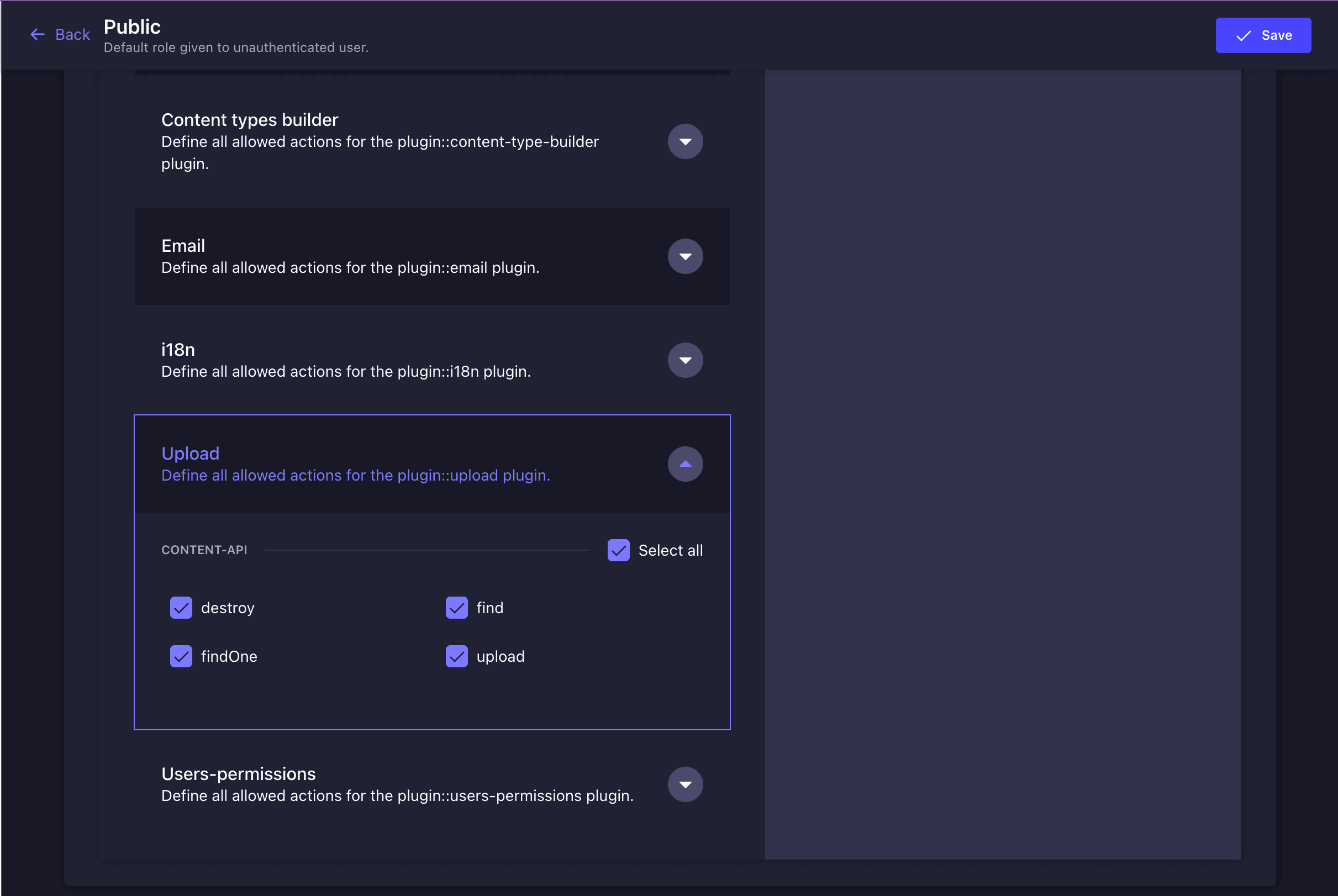

Then, we'll configure API permissions to allow public access for fetching inventory data by:

• Navigating to Settings → Users & Permissions Plugin → Roles → Public.
• Click the 'edit' icon in Public.
• We'll then toggle the Inventory collection under "Permission" and tick the Select all checkbox for the collection. Save it.

Remember To add Image for API Permission

Test API

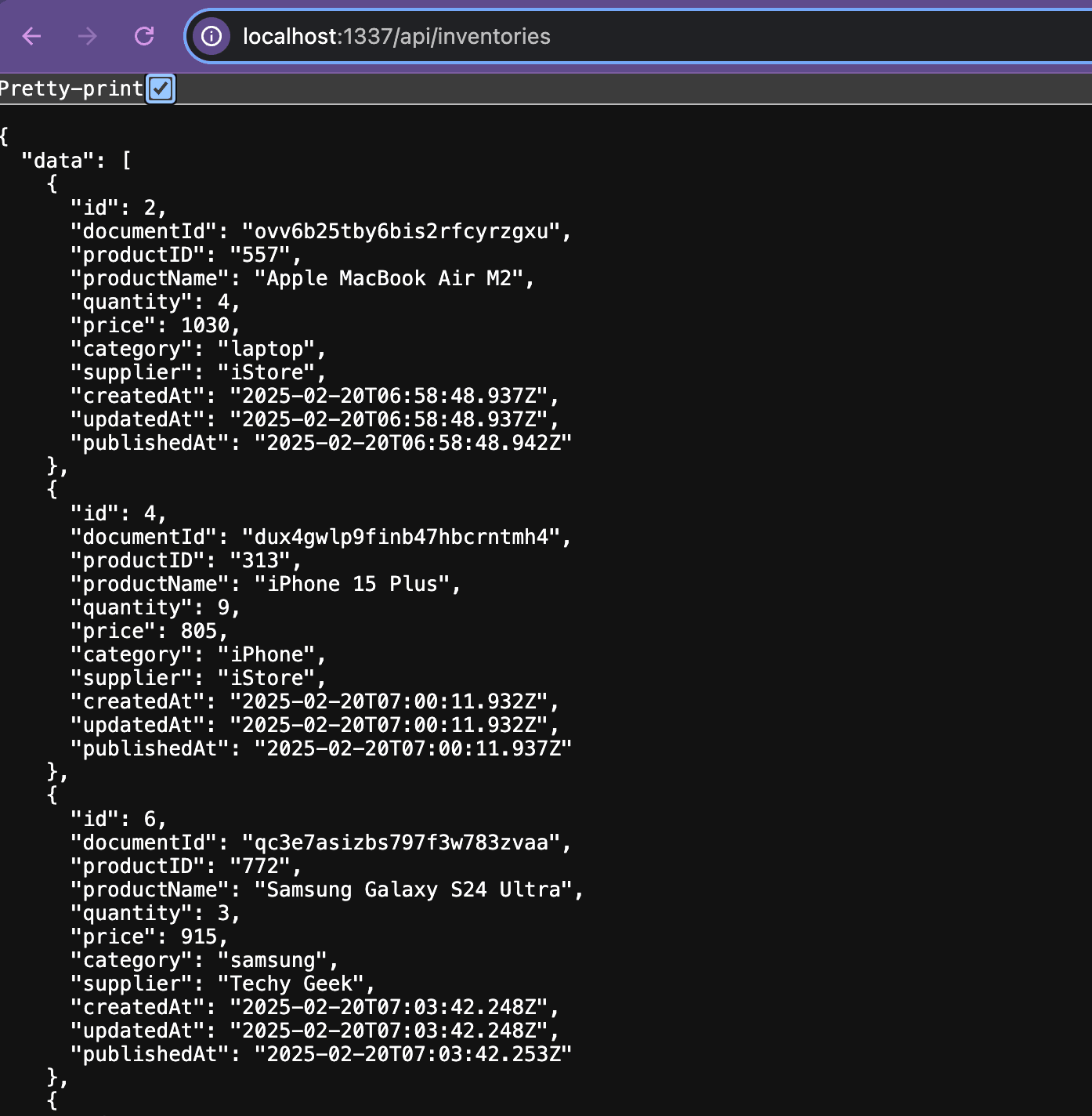

Now the http://localhost:1337/api/inventories endpoint is ready. We can now make GET requests to it.

If we visit the endpoint, we'll see that the entires are now being displayed in the JSON response.

That's all for the Strapi configuration. Let's move on to the frontend.

Setting Up the React Frontend with TanStack

It's time to build the UI of the inventory management system and we'll do this using React and TanStack.

We'll be building the project from scratch so we won't be using the TanStack quick start. Refer to the TanStack Start official documentation.

Create a New Directory and Initialize It

We'll create a new project directory for the frontend in the root directory of the main project.

Since we're already in the backend directory, we will navigate back to the root directory using the cd .. command.

After that, we'll create a new directory and initialize it using:

mkdir frontend
cd frontend
npm init -y

This will create a package.json file in our frontend folder.

Configure TypeScript

According to the documentation, it is recommended to use TypeScript with TanStack Start. So we'll create a tsconfig.json file in the root of the frontend project directory and input these lines of code:

1{
2  "compilerOptions": {
3    "jsx": "react-jsx",
4    "moduleResolution": "Bundler",
5    "module": "ESNext",
6    "target": "ES2022",
7    "skipLibCheck": true,
8    "strictNullChecks": true,
9  },
10}

Install Necessary Dependencies and Libraries for The Frontend

The dependencies and libraries we'll be needing include:

• Vinxi: What currently powers TanStack Start
• React
• Vite React Plugin: The default Vite plugin for React projects.
• TypeScript
• TanStack libraries (Router, Table, Form)
• qs and redaxios

1. Install the first two TanStack libraries using this command in the frontend folder:

npm i @tanstack/react-start @tanstack/react-router vinxi

This will install the package-lock.json file and node_modules folder in our frontend folder. 2. Install React and the Vite React Plugin using:

npm i react react-dom && npm i -D @vitejs/plugin-react vite-tsconfig-paths

3. Next, install TypeScript and types using:

npm i -D typescript @types/react @types/react-dom

4. The qs library will convert a JavaScript object into a query string that is sent to Strapi to enable us define complex populate and filter logic directly in JavaScript. While the redaxios library is a lightweight alternative to Axios for making HTTP requests. We'll install these two libraries using this command in our terminal:

1npm install qs redaxios

5. And finally, let's install the TanStack libraries we'll need using:

npm install @tanstack/react-table @tanstack/react-form @tanstack/react-router

Now that the libraries and dependencies have been installed, let's update the configuration files.

Update Frontend Configuration Files

The following are the configuration files we'll be updating.

1. First, we'll update the package.json to use Vinxi's CLI and set "type": "module", like this:

1{
2  // ...
3  "type": "module",
4  "scripts": {
5    "dev": "vinxi dev",
6    "build": "vinxi build",
7    "start": "vinxi start"
8  }
9}

2. Now, we'll create a TanStack Start's app.config.ts file and configure it, like this:

1// app.config.ts
2import { defineConfig } from '@tanstack/start/config'
3import tsConfigPaths from 'vite-tsconfig-paths'
4
5export default defineConfig({
6  vite: {
7    plugins: [
8      tsConfigPaths({
9        projects: ['./tsconfig.json'],
10      }),
11    ],
12  },
13})

TanStack Folder Structure

From all the installations and configurations, we can see that there's currently no app or folder for the main frontend code. We'll create this manually.

In the frontend directory, we'll create a folder called app. This will be the main directory for the frontend application using TanStack Start. It will contain everything needed for routing, client-side rendering, and server-side rendering (SSR).

Now inside the app folder, create the following:

• A routes folder
• A file inside the routes folder called __root.tsx
• A client.tsx file
• A ssr.tsx file
• A router.tsx file
• A routeTree.gen.ts file

This is how the folder structure of our frontend folder looks like now:

1frontend/
2┣ app/
3┃ ┣ routes/
4┃ ┃ ┗ __root.tsx
5┃ ┣ client.tsx
6┃ ┣ router.tsx
7┃ ┣ routeTree.gen.ts
8┃ ┗ ssr.tsx
9┣ node_modules/
10┣ app.config.ts
11┣ package-lock.json
12┣ package.json
13┗ tsconfig.json

Now let's understand what each of these new files do.

1. routes/: This contains all the pages (routes) of our app. Each file inside will represent a different route.

2. root.tsx: The will be the root layout. It is a special route that wraps all other pages and defines the layout that wraps all routes in the app.

Paste these lines of code into this app/routes/__root.tsx file:

1// app/routes/__root.tsx
2import type { ReactNode } from 'react'
3import {
4  Outlet,
5  createRootRoute,
6  HeadContent,
7  Scripts,
8} from '@tanstack/react-router'
9
10export const Route = createRootRoute({
11  head: () => ({
12    meta: [
13      {
14        charSet: 'utf-8',
15      },
16      {
17        name: 'viewport',
18        content: 'width=device-width, initial-scale=1',
19      },
20      {
21        title: 'TanStack Start Starter',
22      },
23    ],
24  }),
25  component: RootComponent,
26})
27
28function RootComponent() {
29  return (
30    <RootDocument>
31      <Outlet />
32    </RootDocument>
33  )
34}
35
36function RootDocument({ children }: Readonly<{ children: ReactNode }>) {
37  return (
38    <html>
39      <head>
40        <HeadContent />
41      </head>
42      <body>
43        {children}
44        <Scripts />
45      </body>
46    </html>
47  )
48}

It contains:

• <Outlet />, where child routes (pages) will be rendered.
• <HeadContent />, which manages metadata (e.g., title, meta tags).
• <Scripts />, which loads necessary scripts for routing & interactivity.

3. router.tsx

This is the router configuration that configures how TanStack Router behaves.

Let's paste these lines of code into this app/routes/router.tsx file:

1// app/router.tsx
2import { createRouter as createTanStackRouter } from '@tanstack/react-router'
3import { routeTree } from './routeTree.gen'
4
5export function createRouter() {
6  const router = createTanStackRouter({
7    routeTree,
8    scrollRestoration: true,
9  })
10
11  return router
12}
13
14declare module '@tanstack/react-router' {
15  interface Register {
16    router: ReturnType<typeof createRouter>
17  }
18}

It contains:

• routeTree, which is a generated file that lists all routes (created automatically).
• scrollRestoration: true, which ensures that when users navigate, the page scrolls to the correct position.

4. ssr.tsx This is the server entry point that handles server-side rendering (SSR) so that when a user visits the site, the server will generate the page before sending it to the browser.

Read more about SSR on TanStack.

We'll paste these lines of code into our app/ssr.tsx file:

1// app/ssr.tsx
2import {
3    createStartHandler,
4    defaultStreamHandler,
5  } from '@tanstack/start/server'
6  import { getRouterManifest } from '@tanstack/start/router-manifest'
7
8  import { createRouter } from './router'
9
10  export default createStartHandler({
11    createRouter,
12    getRouterManifest,
13  })(defaultStreamHandler)

It containes createStartHandler() which runs on the server to process and serve routes.

5. client.tsx This is the client entry point that will hydrate the app on the browser after SSR.

Let's go ahead and paste the following lines of code into the app/client.tsx file:

1// app/client.tsx
2/// <reference types="vinxi/types/client" />
3import { hydrateRoot } from 'react-dom/client'
4import { StartClient } from '@tanstack/start'
5import { createRouter } from './router'
6
7const router = createRouter()
8
9hydrateRoot(document, <StartClient router={router} />)

It contains:

• hydrateRoot(), which hydrates the app in the browser.
• <StartClient />, which initializes TanStack Router on the client.

6. routeTree.gen.ts

The content of the app/routes/routeTree.gen.ts file will be automatically generated to keep track of all routes when we run npm run dev or npm run start.

We don’t edit this manually!

Setup Main TanStack Start Route of The Frontend Application

Once we're done creating those necessary files, we can go ahead to create or define the first route (page) of our application, which will be the main page or home page.

We'll start by creating a new file in app/routes directory called index.tsx and inputting these lines of code, which will return a simple welcome message.

1// app/routes/index.tsx
2import { createFileRoute } from '@tanstack/react-router'
3
4export const Route = createFileRoute('/')({
5  component: Home,
6})
7
8function Home() {
9  return (
10    <div className="p-2">
11      <h3>Welcome! Manage your inventory efficiently</h3>
12    </div>
13  )
14}

We'll then visit "http://localhost:3000/" to view our page on the browser:

Helper Functions for Interacting with Strapi

We'll create a utils/ folder that will contain helper functions for interacting with Strapi (our backend CMS). These functions will fetch data and handle our product image media URLs properly.

Inside this folder, we'll create two files: strapi.ts and inventories.tsx.

1. strapi.ts

This file will handle Strapi URLs and media files.

Let's input these lines of code into this file:

1// app/utils/strapi.ts
2export function getStrapiURL() {
3    return import.meta.env.VITE_STRAPI_BASE_URL ?? "http://localhost:1337";
4  }
5
6  export function getStrapiMedia(url: string | null) {
7    if (url == null) return null;
8    if (url.startsWith("data:")) return url;
9    if (url.startsWith("http") || url.startsWith("//")) return url;
10    return `${getStrapiURL()}${url}`;
11  }

The file contains two functions:

• The getStrapiURL() which gets the base URL of our Strapi API from environment variables. In this case, the VITE_STRAPI_BASE_URL isn't set in .env, so it will default to http://localhost:1337 (Strapi's default local URL).
• And the getStrapiMedia(url: string | null) function which generates full URLs for images and media stored in Strapi

2. inventories.tsx

This file is responsible for fetching inventories from our Strapi's API.

First, let's paste these lines of code:

1// app/utils/inventories.tsx
2import { notFound } from "@tanstack/react-router";
3import { createServerFn } from "@tanstack/start";
4import qs from "qs";
5import axios from "redaxios";
6
7import { getStrapiURL } from "./strapi";
8
9const BASE_API_URL = getStrapiURL();
10
11interface StrapiArrayResponse<T> {
12  data: T[];
13  meta: {
14    pagination: {
15      page: number;
16      pageSize: number;
17      pageCount: number;
18      total: number;
19    };
20  };
21}
22
23interface StrapiResponse<T> {
24  data: T;
25}
26
27interface ProductImage {
28  url: string;
29  alternativeText: string;
30}
31
32export type InventoryType = {
33  id: number;
34  productID: string;
35  productName: string;
36  quantity: number;
37  price: number;
38  category: string;
39  supplier: string;
40  productImage: ProductImage;
41};
42
43// Fetch a single inventory item by ID
44export const fetchInventoryItem = createServerFn({ method: "GET" })
45  .validator((id: string) => id)
46  .handler(async ({ data }) => {
47    console.info(`Fetching inventory item with id ${data}...`);
48
49    const path = "/api/inventories/" + data;
50    const url = new URL(path, BASE_API_URL);
51
52    url.search = qs.stringify({
53      populate: {
54        productImage: {
55          fields: ["url", "alternativeText"],
56        },
57      },
58    });
59
60    const inventoryItem = await axios
61      .get<StrapiResponse<InventoryType>>(url.href)
62      .then((r) => r.data.data)
63      .catch((err) => {
64        console.error(err);
65        if (err.status === 404) {
66          throw notFound();
67        }
68        throw err;
69      });
70
71    return inventoryItem;
72  });
73
74// Fetch all inventory items
75export const fetchInventories = createServerFn({ method: "GET" }).handler(
76  async () => {
77    console.info("Fetching inventory items...");
78
79    const path = "/api/inventories";
80    const url = new URL(path, BASE_API_URL);
81
82    url.search = qs.stringify({
83      populate: {
84        productImage: {
85          fields: ["url", "alternativeText"],
86        },
87      },
88    });
89
90    return axios.get<StrapiArrayResponse<InventoryType>>(url.href).then((r) => {
91      console.dir(r.data, { depth: null });
92      return r.data.data;
93    });
94  }
95);

This inventories.tsx file is responsible for fetching inventory data from Strapi’s REST API. It provides two main functions:

• fetchInventoryItem(id: string) to fetch a single inventory item by ID.

• fetchInventories() to fetch all inventory items.

At the top, we imported qs and redaxios.

The inventories.tsx file ensures that data is retrieved with necessary relationships (like images) and handles errors properly.

Adding Routes to Other Pages in TanStack Start

Now in order to enable users route from one page to another, we'll do this in the app/routes/__root.tsx file.

1. First, let's change the title of our app from the "TanStack Start Starter" to "Inventory Management System" in the meta of the file, like this:

1//app/routes/__root.tsx
2export const Route = createRootRoute({
3  head: () => ({
4    meta: [
5      ...
6      {
7        title: 'Inventory Management App',
8      },
9    ],
10  }),
11  component: RootComponent,
12})

2. Import Link to the file by updating the TanStack react-router import at the top of this file to this:

1import {Outlet, Link, createRootRoute, HeadContent, Scripts,} from "@tanstack/react-router";

3. Now we'll update the <body> of the RootDocument function to this to include the inventories page:

1<body>
2  <div>
3    <Link
4      to="/"
5     activeProps={{
6      }}
7      activeOptions={{ exact: true }}
8    >
9      Home
10    </Link>{" "}
11    <Link
12      to="/inventories"
13      activeProps={{
14      }}
15    >
16      Inventories
17    </Link>{" "}
18  </div>
19  {children}
20  <Scripts />
21</body>

And that's all we need to do to include navigation links across the pages in our app.

Fetching Inventory

Our app will contain two pages: the main page and the inventory list page.

We've created the main page as our home page. Now let's improve it by styling and adding navigation link to the inventory list page.

1. Home Page

Let's create a basic landing page for our inventory management application by updating the index.tsx file in our app/routes folder.

1//app/routes/index.tsx
2import { createFileRoute } from "@tanstack/react-router";
3import { Link } from "@tanstack/react-router";
4
5export const Route = createFileRoute("/")({
6  component: Home,
7});
8
9function Home() {
10  return (
11    <section>
12      <div>
13        <h2>Why Businesses Trust Our Inventory Management</h2>
14        <p>
15          Our inventory management system ensures real-time tracking, reduces
16          waste, and optimizes stock levels. Businesses rely on us for accuracy,
17          efficiency, and seamless integration with their operations.
18        </p>
19      </div>
20      <div>
21        <div>
22          <ul>
23            <li>
24              <span>✔</span>
25              <p>
26                <strong>Real-time Stock Updates</strong>
27                <br />
28                Always know your inventory levels to prevent shortages and
29                overstocking.
30              </p>
31            </li>
32            <li>
33              <span>✔</span>
34              <p>
35                <strong>Automated Restocking</strong>
36                <br />
37                Set up automatic reorders to ensure stock never runs out.
38              </p>
39            </li>
40            <li>
41              <span>✔</span>
42              <p>
43                <strong>Seamless Integrations</strong>
44                <br />
45                Connect with your POS, e-commerce, and accounting systems
46                effortlessly.
47              </p>
48            </li>
49            <li>
50              <span>✔</span>
51              <p>
52                <strong>Comprehensive Reports</strong>
53                <br />
54                Gain insights into trends, stock movements, and business
55                performance.
56              </p>
57            </li>
58          </ul>
59        </div>
60      </div>
61      <Link
62        to="/inventories"
63        activeProps={{
64          className: "font-bold",
65        }}
66      >
67        <button>Get Started</button>
68      </Link>{" "}
69    </section>
70  );
71}

This is just a simple home page. Feel free to refine it and customize to add more details about your inventory app.

2. The Inventory List Page

This is the page where all our inventories will be listed out in tabular format to display the info about the inventory.

First, let's display the inventory in a list.

We'll create an inventories.tsx file in our app/routes directory and paste these lines of code into it:

1//app/routes/inventories.tsx
2import { Link, Outlet, createFileRoute } from '@tanstack/react-router';
3import { fetchInventories } from '../utils/inventories';
4
5export const Route = createFileRoute('/inventories')({
6  loader: async () => fetchInventories(),
7  component: InventoriesComponent,
8});
9
10function InventoriesComponent() {
11  const inventories = Route.useLoaderData();
12
13  return (
14    <div>
15      <div>
16        <h2>Inventories</h2>
17        <ul>
18          {inventories.map((inventory) => {
19            return (
20              <li key={inventory.id}>
21                  <div>{inventory.productName.substring(0, 20)}</div>
22              </li>
23            );
24          })}
25        </ul>
26      </div>
27      <div>
28        <Outlet />
29      </div>
30    </div>
31  );
32}

Breakdown of the code

• We imported the createFileRoute and Outlet from @tanstack/react-router` to define a route for our inventory page.
• Then we imported the fetchInventories from the inventories file in the utils folder which will help us fetch the inventory data from our Strapi server.
• Next, we define a route (/inventories) in the application. The loader function (fetchInventories()) fetches inventory data when the page loads. While the InventoriesComponent is the component that renders the inventory list from the inventory component function we created underneath it.
• Then the Route.useLoaderData() retrieves the inventory data from the route loader.
• Finally, we rendered the inventory in a list.

The <Outlet /> allows nested routes to be rendered inside this component.

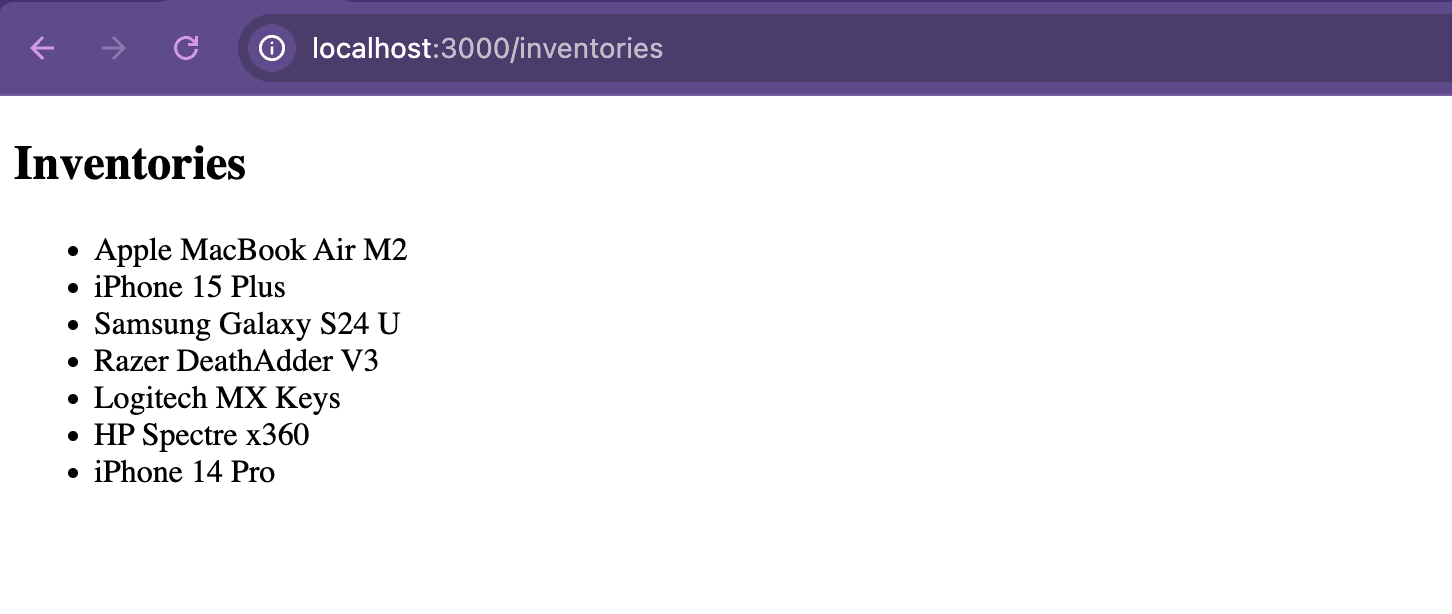

We'll now go to the browser and navigate to the inventory page by adding /inventories to the http://localhost:3000, so it'll be this: http://localhost:3000/inventories.

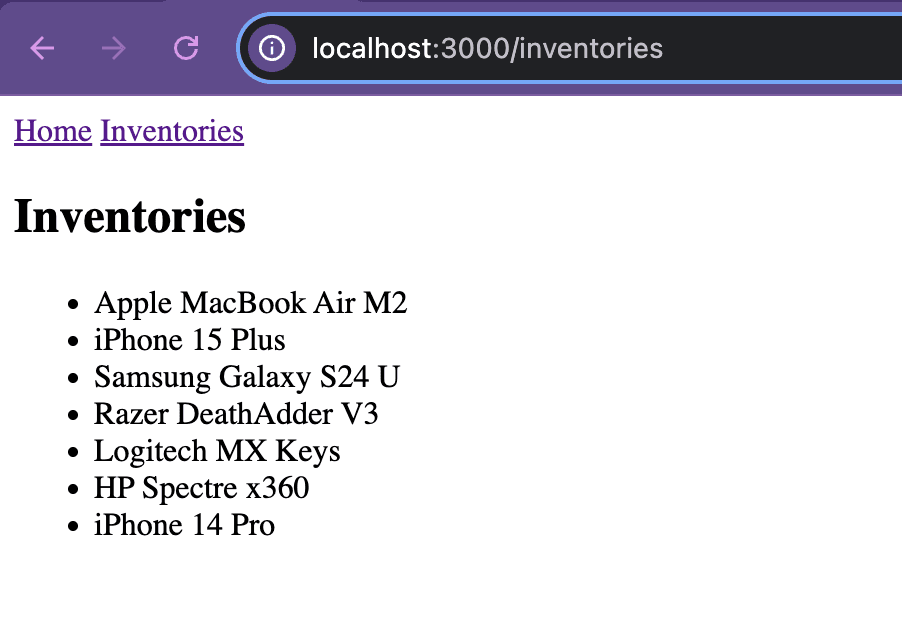

We can now see our inventories displayed in a list with only the product names being shown as we want it for now:

But this isn't how we want our inventories to be displayed, so let's fix the display format with TanStack Table and add a few functionalities for searching and filtering.

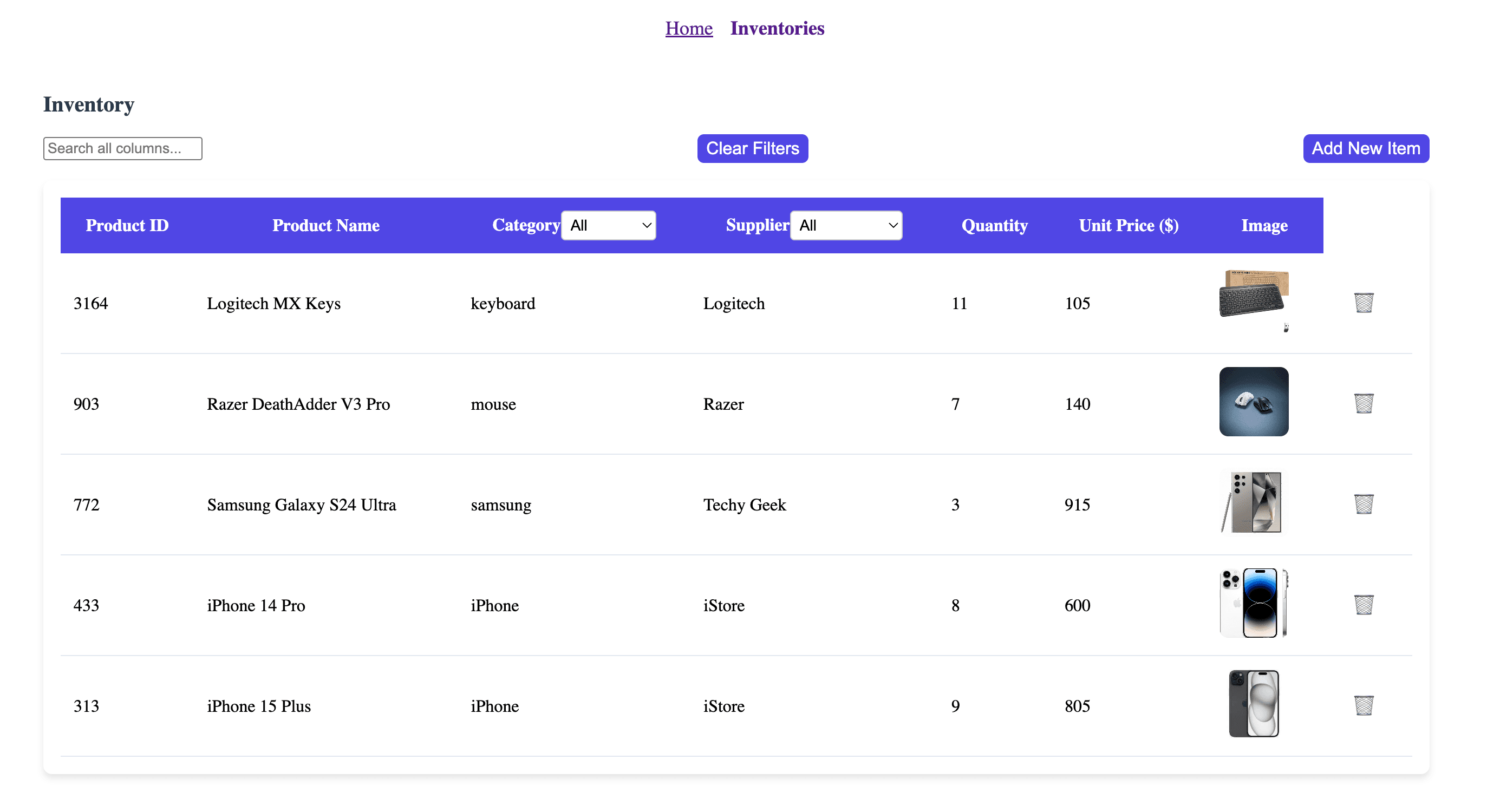

Creating a TanStack Table with Search and Filtering

Update the inventories.tsx file located in the app/routes folder with the following lines of code:

1//app/routes/inventories.tsx
2import { Link, Outlet, createFileRoute } from "@tanstack/react-router";
3import { fetchInventories } from "../utils/inventories";
4import {
5  ColumnDef,
6  flexRender,
7  getCoreRowModel,
8  getFilteredRowModel,
9  useReactTable,
10} from "@tanstack/react-table";
11import { useState } from "react";
12import { getStrapiURL } from "../utils/strapi";
13import SearchInput from "../components/SearchInput";
14
15export const Route = createFileRoute("/inventories")({
16  loader: async () => fetchInventories(),
17  component: InventoriesComponent,
18});
19
20export type Inventory = {
21  id: number;
22  productID: string;
23  productName: string;
24  quantity: number;
25  price: number;
26  category: string;
27  supplier: string;
28  productImage: { url: string; alternativeText: string };
29};
30
31function InventoriesComponent() {
32  const inventories = Route.useLoaderData();
33
34  // State for global filter
35  const [globalFilter, setGlobalFilter] = useState("");
36
37  // Define table columns
38  const columns: ColumnDef<Inventory>[] = [
39    {
40      accessorKey: "productID",
41      header: "Product ID",
42      sortingFn: "alphanumeric",
43    },
44    {
45      accessorKey: "productName",
46      header: "Product Name",
47      sortingFn: "alphanumeric",
48    },
49    { accessorKey: "category", header: "Category" },
50    { accessorKey: "supplier", header: "Supplier" },
51    { accessorKey: "quantity", header: "Quantity", sortingFn: "basic" },
52    { accessorKey: "price", header: "Unit Price ($)", sortingFn: "basic" },
53    {
54      accessorKey: "productImage",
55      header: "Image",
56      cell: ({ row }) => (
57        <img
58          src={`http://localhost:1337${row.original.productImage?.url}`}
59          alt={
60            row.original.productImage?.alternativeText ||
61            row.original.productName
62          }
63          className="inventory-image"
64        />
65      ),
66    },
67  ];
68
69  // Create Table Instance
70  const table = useReactTable({
71    data: inventories,
72    columns,
73    state: {
74      globalFilter,
75    },
76    getCoreRowModel: getCoreRowModel(),
77    getFilteredRowModel: getFilteredRowModel(),
78  });
79
80  // State for filter values
81  const [categoryFilter, setCategoryFilter] = useState("");
82  const [supplierFilter, setSupplierFilter] = useState("");
83
84  // Extract unique categories and suppliers for dropdowns
85  const uniqueCategories = [
86    ...new Set(inventories.map((item) => item.category)),
87  ];
88  const uniqueSuppliers = [
89    ...new Set(inventories.map((item) => item.supplier)),
90  ];
91
92  // Filter data based on category and supplier
93  const filteredData = inventories.filter((item) => {
94    return (
95      (categoryFilter ? item.category === categoryFilter : true) &&
96      (supplierFilter ? item.supplier === supplierFilter : true)
97    );
98  });
99
100  return (
101    <div>
102      <h2>Inventory</h2>
103
104      {/* Global Search Filter Input */}
105      <div>
106        <div>
107          <SearchInput
108            value={globalFilter ?? ""}
109            onChange={(value) => setGlobalFilter(String(value))}
110            placeholder="Search all columns..."
111          />
112        </div>
113
114        {/* Clear Filters Button */}
115        <button
116          onClick={() => {
117            setCategoryFilter("");
118            setSupplierFilter("");
119          }}
120        >
121          Clear Filters
122        </button>
123
124      {/* Table Container */}
125      <div>
126        <table>
127          <thead>
128            {table.getHeaderGroups().map((headerGroup) => (
129              <tr key={headerGroup.id}>
130                {headerGroup.headers.map((header) => (
131                  <th key={header.id}>
132                    {flexRender(
133                      header.column.columnDef.header,
134                      header.getContext()
135                    )}
136                    {/* Category filter beside Category header */}
137                    {header.column.id === "category" && (
138                      <select
139                        value={categoryFilter}
140                        onChange={(e) => setCategoryFilter(e.target.value)}>
141                        <option value="">All</option>
142                        {uniqueCategories.map((cat) => (
143                          <option key={cat} value={cat}>
144                            {cat}
145                          </option>
146                        ))}
147                      </select>
148                    )}
149
150                    {/* Supplier filter beside Supplier header */}
151                    {header.column.id === "supplier" && (
152                      <select
153                        value={supplierFilter}
154                        onChange={(e) => setSupplierFilter(e.target.value)}>
155                        <option value="">All</option>
156                        {uniqueSuppliers.map((sup) => (
157                          <option key={sup} value={sup}>
158                            {sup}
159                          </option>
160                        ))}
161                      </select>
162                    )}
163                  </th>
164                ))}
165              </tr>
166            ))}
167          </thead>
168
169          <tbody>
170            {filteredData.length > 0 ? (
171              filteredData.map((newItem) => (
172                <tr key={newItem.id} className="border-b">
173                  {table
174                    .getRowModel()
175                    .rows.find((row) => row.original.id === newItem.id)
176                    ?.getVisibleCells()
177                    .map((cell) => (
178                      <td key={cell.id} className="p-3">
179                        {flexRender(
180                          cell.column.columnDef.cell,
181                          cell.getContext()
182                        )}
183                      </td>
184                    ))}
185                </tr>
186              ))
187            ) : (
188              <tr>
189                <td
190                  colSpan={columns.length}>
191                  Oops! No item matching your search was found.
192                </td>
193              </tr>
194            )}
195          </tbody>
196        </table>
197      </div>
198
199      <Outlet />
200    </div>
201  );
202}
203
204export default InventoriesComponent;

Breakdown of the code

• First, we imported the necessary hooks and utilities (ColumnDef, flexRender, getFilteredRowModel, getCoreRowModel, useReactTable, ) used to create and manage tables in React from the TanStack Table.
• We also imported the useState hook for managing component state, the getStrapiURL function to get the Strapi API URL for fetching media assets, and a SearchInput file for a search input component.
• The route was already set up in our inventories file as we did when we displayed our items in a list.
• The export type Inventory defines a TypeScript type Inventory to represent each inventory item.
• Inside the InventoriesComponent fucntion, we first retrieved the inventory data loaded by the route and then set a state for global search filtering.
• Next up, we defined an array of table columns for displaying inventory data. The productID and productName columns are sortable alphanumerically. Our image column will display a thumbnail of the product image.
• We then initialized TanStack Table with the following: data for the inventory list, columns for the defined columns, globalFilter state for global filtering, getCoreRowModel() which returns a basic row model that maps the original data passed to the table, and getFilteredRowModel() to enable filtering.
• The next thing we did was to set states for category and supplier filters. We then extracted unique categories and suppliers for filter dropdowns. This then filters inventory data based on selected category and supplier.
• We rendered the search input for the global search input and added a button to clear the filtered rows.
• Finally, we render the table using:
  • The Header (thead) loops through table.getHeaderGroups() to create column headers.
  • The Body (tbody) loops through table.getRowModel() to display inventory data. It then uses flexRender() to correctly render the cell content.

TanStack Table Search Functionality for the Inventory List

You'll notice that in the above code, we imported a file called SearchInput. That's where the functionality for the search input is located, so we'll go ahead and create one.

We'll create a components folder and a file inside it called SearchInput.tsx. Now let's paste these lines of code inside it:

1//app/components/SearchInput.tsx
2import { useEffect, useState } from "react";
3
4const Input = ({
5  value: initValue,
6  onChange,
7  debounce = 500,
8  ...props
9}) => {
10  const [value, setValue] = useState(initValue);
11  useEffect(() => {
12    setValue(initValue);
13  }, [initValue]);
14
15  // *  0.5s after set value in state
16  useEffect(() => {
17    const timeout = setTimeout(() => {
18      onChange(value);
19    }, debounce);
20    return () => clearTimeout(timeout);
21  }, [value]);
22
23  return (
24    <input
25      {...props}
26      value={value}
27      onChange={(e) => setValue(e.target.value)}
28    />
29  );
30};
31
32export default Input;

Breakdown of the code:

• First, we imported the useState hook to manage the state of the input value and the useEffect hook to handle side effects, such as syncing values and implementing the debounce functionality.

• The const Input = ({...}) is designed as a controlled component that accepts the following props: value: initValue: This is the initial value passed to the component.

onChange: A function to handle changes when the input updates.

debounce = 500: Has a default debounce time of 500ms (0.5s) before invoking the onChange function. ...props: Allows passing additional props to the element.

• Next, we created a state variable value and initialized it with initValue. Whenever initValue changes (e.g., when the parent component updates it), this effect will ensure that the internal state (value) is also updated.
• The useEffect is used when value changes to start a timer (setTimeout). After debounce milliseconds (default: 500ms), onChange(value) is called.
• If value changes before the delay is over, the clearTimeout(timeout) cancels the previous timer to prevent unnecessary function calls (debouncing). This helps to avoid calling onChange on every keystroke to improve performance.
• Finally, we rendered the input field by spreading any additional props (...props) onto the <input> element. The value state controls the value and the onChange event updates value whenever the user types.

When we go to our browser, this is how our table looks like as seen in the video below:

We are now able to search for inventory items by their product name or product id and filter the list by category or supplier.

Refer to the TanStack Table documentation to get the complete guide on every features, utilities, and APIs that can be used in the TanStack Table.

But that's not all! We want the user, in this case, an admin of the store to be able to add new inventory items to the table and to the Strapi backend admin panel.

Adding Inventory Items with TanStack Form

TanStack Form is a headless, performant, and type-safe form state management for TS/JS, React, Vue, Angular, Solid, and Lit. TanStack form will also handle the form validation.

Creating Inventory Form

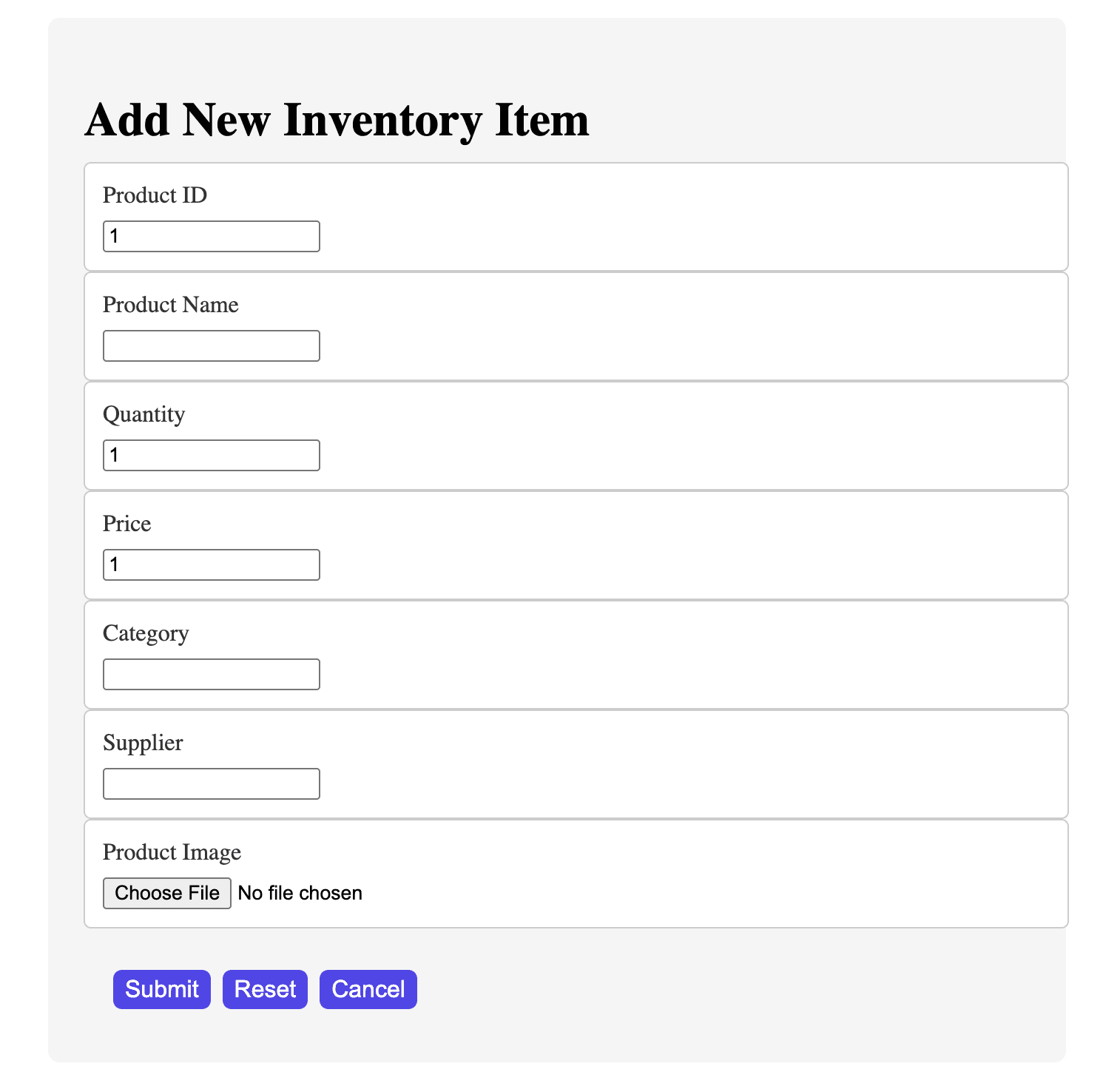

To get started with the "Add" functionality, we'll first create a file inside the componentsfolder called ItemForm.tsx and paste the following lines of code in it:

1// app/components/ItemForm.tsx
2import { useForm } from "@tanstack/react-form";
3import * as React from "react";
4
5function FieldInfo({ field }) {
6  return (
7    <>
8      {field.state.meta.isTouched && field.state.meta.errors.length ? (
9        <em>{field.state.meta.errors.join(", ")}</em>
10      ) : null}
11      {field.state.meta.isValidating ? "Validating..." : null}
12    </>
13  );
14}
15
16export default function ItemForm({ onClose, onItemAdded }) {
17  const form = useForm({
18    defaultValues: {
19      productID: 1,
20      productName: "",
21      quantity: 1,
22      price: 1,
23      category: "",
24      supplier: "",
25      productImage: null as File | null, // Added image field
26    },
27    onSubmit: async ({ value }) => {
28      try {
29        // Step 1: Create the inventory entry
30        const { productImage, ...formData } = value; // Exclude image from first request
31        const payload = { data: formData };
32
33        const entryResponse = await fetch("http://localhost:1337/api/inventories", {
34          method: "POST",
35          headers: { "Content-Type": "application/json" },
36          body: JSON.stringify(payload),
37        });
38
39        if (!entryResponse.ok) throw new Error("Failed to create entry");
40
41        const entryData = await entryResponse.json();
42        console.log("Entry created:", entryData);
43        const documentId = entryData.data.documentId;
44
45        // Step 2: Upload the image
46        const formDataImage = new FormData();
47        if (productImage) {
48          formDataImage.append("files", productImage); // Append selected file
49        }
50
51        const imageResponse = await fetch("http://localhost:1337/api/upload", {
52          method: "POST",
53          body: formDataImage,
54        });
55
56        if (!imageResponse.ok) throw new Error("Failed to upload image");
57
58        const uploadedImage = await imageResponse.json();
59        console.log("Image uploaded:", uploadedImage);
60        const imageId = uploadedImage[0].id;
61
62        // Step 3: Perform PUT request to update entry with image ID
63        const updatePayload = {
64          data: { productImage: imageId },
65        };
66
67        const updateResponse = await fetch(`http://localhost:1337/api/inventories/${documentId}`, {
68          method: "PUT",
69          headers: { "Content-Type": "application/json" },
70          body: JSON.stringify(updatePayload),
71        });
72
73        if (!updateResponse.ok) throw new Error("Failed to update entry with image");
74        console.log("Entry updated with image", updateResponse);
75
76        onItemAdded(entryData.data.attributes || entryData.data);
77        alert("Item added successfully with image!");
78        window.location.reload(); // Reload page to show new item
79      } catch (error) {
80        console.error("Error during item creation:", error);
81        alert("Error adding item.");
82      }
83    },
84  });
85
86  return (
87    <div>
88      <form
89        onSubmit={(e) => {
90          e.preventDefault();
91          e.stopPropagation();
92          form.handleSubmit();
93        }}
94      >
95        {/* Product ID */}
96        <form.Field
97          name="productID"
98          validators={{
99            onChange: ({ value }) =>
100              !value || value <= 0 ? "Product ID must be greater than 0" : undefined,
101          }}
102          children={(field) => (
103            <>
104              <label htmlFor={field.name}>Product ID</label>
105              <input
106                id={field.name}
107                type="number"
108                value={field.state.value}
109                onChange={(e) => field.handleChange(Number(e.target.value))}
110              />
111              <FieldInfo field={field} />
112            </>
113          )}
114        />
115
116        {/* Product Name */}
117        <form.Field
118          name="productName"
119          validators={{
120            onChange: ({ value }) =>
121              !value ? "Product name is required" : value.length < 3 ? "Must be at least 3 characters" : undefined,
122          }}
123          children={(field) => (
124            <>
125              <label htmlFor={field.name}>Product Name</label>
126              <input id={field.name} value={field.state.value} onChange={(e) => field.handleChange(e.target.value)} />
127              <FieldInfo field={field} />
128            </>
129          )}
130        />
131
132        {/* Quantity */}
133        <form.Field
134          name="quantity"
135          validators={{
136            onChange: ({ value }) => (value <= 0 ? "Quantity must be at least 1" : undefined),
137          }}
138          children={(field) => (
139            <>
140              <label htmlFor={field.name}>Quantity</label>
141              <input
142                id={field.name}
143                type="number"
144                value={field.state.value}
145                onChange={(e) => field.handleChange(Number(e.target.value))}
146              />
147              <FieldInfo field={field} />
148            </>
149          )}
150        />
151
152        {/* Price */}
153        <form.Field
154          name="price"
155          validators={{
156            onChange: ({ value }) => (value <= 0 ? "Price must be greater than 0" : undefined),
157          }}
158          children={(field) => (
159            <>
160              <label htmlFor={field.name}>Price</label>
161              <input
162                id={field.name}
163                type="number"
164                value={field.state.value}
165                onChange={(e) => field.handleChange(Number(e.target.value))}
166              />
167              <FieldInfo field={field} />
168            </>
169          )}
170        />
171
172        {/* Category */}
173        <form.Field
174          name="category"
175          validators={{
176            onChange: ({ value }) => (!value ? "Category is required" : undefined),
177          }}
178          children={(field) => (
179            <>
180              <label htmlFor={field.name}>Category</label>
181              <input id={field.name} value={field.state.value} onChange={(e) => field.handleChange(e.target.value)} />
182              <FieldInfo field={field} />
183            </>
184          )}
185        />
186
187        {/* Supplier */}
188        <form.Field
189          name="supplier"
190          validators={{
191            onChange: ({ value }) => (!value ? "Supplier is required" : undefined),
192          }}
193          children={(field) => (
194            <>
195              <label htmlFor={field.name}>Supplier</label>
196              <input id={field.name} value={field.state.value} onChange={(e) => field.handleChange(e.target.value)} />
197              <FieldInfo field={field} />
198            </>
199          )}
200        />
201
202        {/* Image Upload */}
203        <form.Field
204          name="productImage"
205          validators={{
206            onChange: ({ value }) => (!value ? "Image is required" : undefined),
207          }}
208          children={(field) => (
209            <>
210              <label htmlFor={field.name}>Product Image</label>
211              <input
212                id={field.name}
213                type="file"
214                accept="image/*"
215                onChange={(e) => {
216                  const file = e.target.files?.[0] || null;
217                  field.handleChange(() => file);
218                }}
219              />
220              <FieldInfo field={field} />
221            </>
222          )}
223        />
224
225        {/* Buttons */}
226        <form.Subscribe
227          selector={(state) => [state.canSubmit, state.isSubmitting]}
228          children={([canSubmit, isSubmitting]) => (
229            <>
230              <button type="submit" disabled={!canSubmit}>
231                {isSubmitting ? "..." : "Submit"}
232              </button>
233              <button type="reset" onClick={() => form.reset()}>
234                Reset
235              </button>
236              <button type="button" onClick={onClose}>
237                Cancel
238              </button>
239            </>
240          )}
241        />
242      </form>
243    </div>
244  );
245}

Breakdown of the code:

• First, we import the useForm from the @tanstack/react-form library to manage form state and validation.
• FieldInfo is a helper component that displays validation errors and validation status for a form field.
• The field.state.meta.isTouched checks if the user has interacted with the field.
• field.state.meta.errors.length checks if there are validation errors.
• field.state.meta.isValidating shows "Validating..." when validation is in progress.
• The main form component ItemForm handles inventory item submissions. It take two props: onClose, which closes the form and onItemAdded which is a callback for when an item is successfully added.
• We then use the useForm to initialize the form with default values for product fields, productImage field set as null initially, and onSubmit to handle form submission.
• We create the inventory entry buy extract productImage separately to exclude it from the first request and prepare a payload with other form data.
• The entryResponse creates a new inventory entry in Strapi by sending a POST request. If the request fails, an error is thrown. We then parse the response and extract the new inventory documentId.
• The next thing we did is to create a FormData object and append the selected image. This will send the image to Strapi's /upload endpoint.
• If the upload is successful, it extracts the uploaded image ID. If not, it returns an error.
• We handled the inventory entries for the product id, name, etc differently than the product image. So we have to update the inventory entry to link the uploaded image by performing a PUT request to update entry with image ID.
• If the update is successful, it logs the response. It calls onItemAdded, alerts success, and reloads the page to show the newly added item. And of course, any error is caught and logged.
• Moving on to the form UI, the form prevents default form submission and calls form.handleSubmit() to process the form.
• name="productID" links the field to the form state.
• validators ensures the field value is greater than 0.
• children renders a <label>, an <input> field bound to the form state, and the FieldInfo to show errors.
• Other fields (productName, quantity, price, category, supplier) follow a similar structure.
• The productImage field uses the <input type="file"> to select an image and calls field.handleChange() to update the form state.
• The form.Subscribe contains buttons for submitting the form, reseting form values, and cancelling submission.

Grant Access Permission for Strapi Images

NB: We are sending the image to Strapi's /upload endpoint and to make sure this works, we have to configure API permissions to allow public access for uploading images in our Strapi admin panel, just like we did at the beginning for the Inventory.

Navigate to Settings → Users & Permissions Plugin → Roles → Public. Click the 'edit' icon in Public.

We'll then toggle the Upload option under "Permission" and tick the Select all checkbox for the collection and then click the "Save" button to save the settings.

Update Inventory Page

The last thing we have to do is update the inventory page to include the add item functionality.

In the inventories.tsx file, we'll do the following:

1. First, we'll import the ItemForm.tsx file from the components folder
2. We'll then create a state to hold the list of inventory items and update dynamically when a new item is added.
3. Next, we'll create a handleItemAdded function to update the inventoryList by adding the newly created item. The spread operator (...prev) will keep existing inventory items intact. We'll also include a default productDetails property.
4. Now, we set another state to control whether the item form is visible or hidden and add a button which when clicked, will set showForm to true, making the form appear.

5. To render the form when needed, we'll:

   • Make the ItemForm component appear only when showForm is true.

   • Set onClose prop to allow closing the form.

   • Include the onItemAdded prop to pass handleItemAdded to ItemForm, enabling it to update the inventory list when a new item is successfully added.

What our form looks like after styling:

Deleting Inventory Item

As an admin of this inventory system, you'd want to be able to delete an inventory item directly on the app instead of doing it from the Strapi admin panel. Here's how we can achieve that:

• First, we'll add a documentId? to the export type Inventory to act as the unique identifier for the inventory item to be deleted. Set the value to string, like this:

1documentId?: string;

• We'll then create a handleDelete function in the routes/inventories.tsx file

1// app/routes/inventories.tsx
2const handleDelete = async (documentId: string) => {
3    try {
4      const response = await fetch(`http://localhost:1337/api/inventories/${documentId}`, {
5        method: "DELETE",
6        headers: { "Content-Type": "application/json" },
7      });
8
9      if (response.ok) {
10        setInventoryList((prev) => prev.filter((item) => item.documentId !== documentId));
11        alert("Item deleted successfully!");
12        console.log("Item deleted successfully!");
13      } else {
14        throw new Error("Failed to delete item");
15      }
16    } catch (error) {
17      console.error(error);
18      alert("Error deleting item");
19    }
20  };
